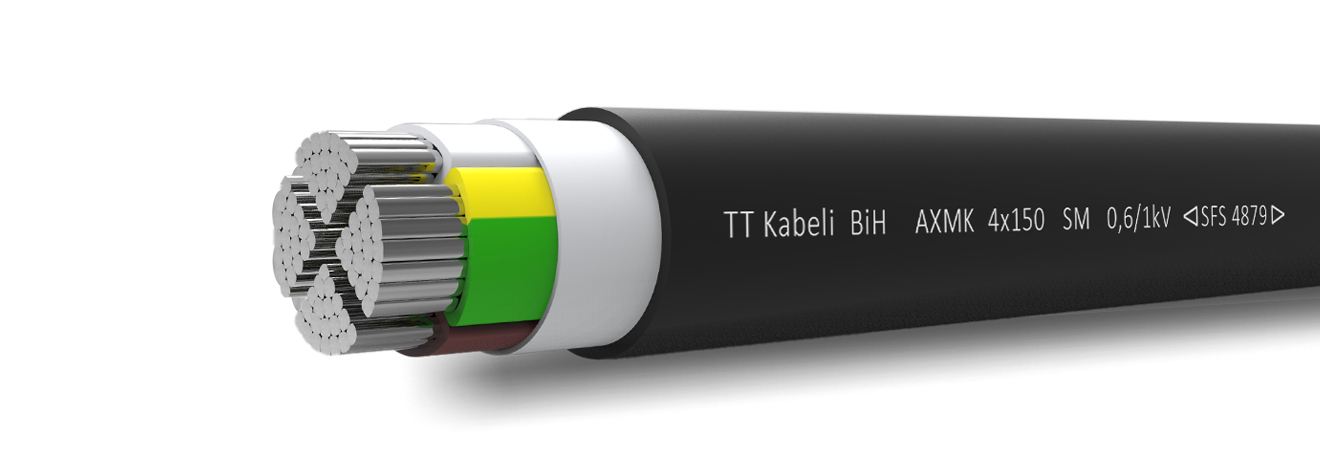

AXMK

Power cable 0,6/1 kV with Al conductors, XLPE insulated and PVC sheathed

APPLICATION

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: Al, class 1 or class 2 according to EN
60228, annealed
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound, UV resistant, black or by customer request

Tehnical characteristics

CPR class: Eca
Test voltage: 4 kV
Rated voltage: 0,6/1/1,2 kV
Bending radius (min): multicore – 10D
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Enviroment working temp: -35°C – +35°C
