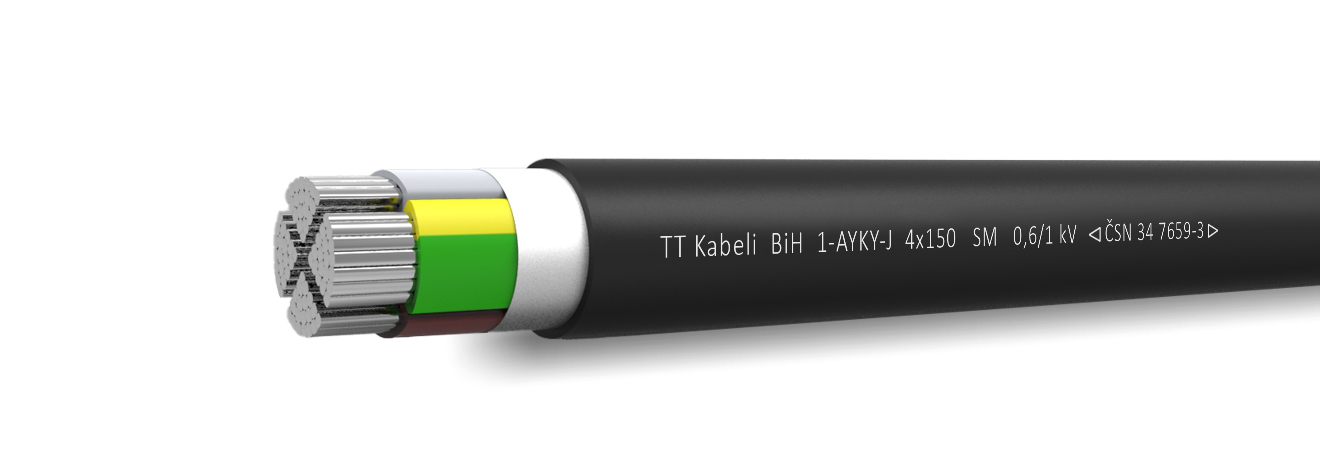

Power cable 0,6/1 kV with Al conductors, PVC insulated and sheathed


In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban
networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.


Conductors: Al, class 1 or 2 according to
EN 60228
Insulation: PVC compound DIV 1
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound DMV 1

Tehnical characteristics

CPR class: Eca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C

Country: Czech Republic, Slovakia
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, PNE 34 7659-3
Type: Power Network & Local Distribution Cable, PVC Cables
Conformitè EuropëenneEZUIECREACHROHS
