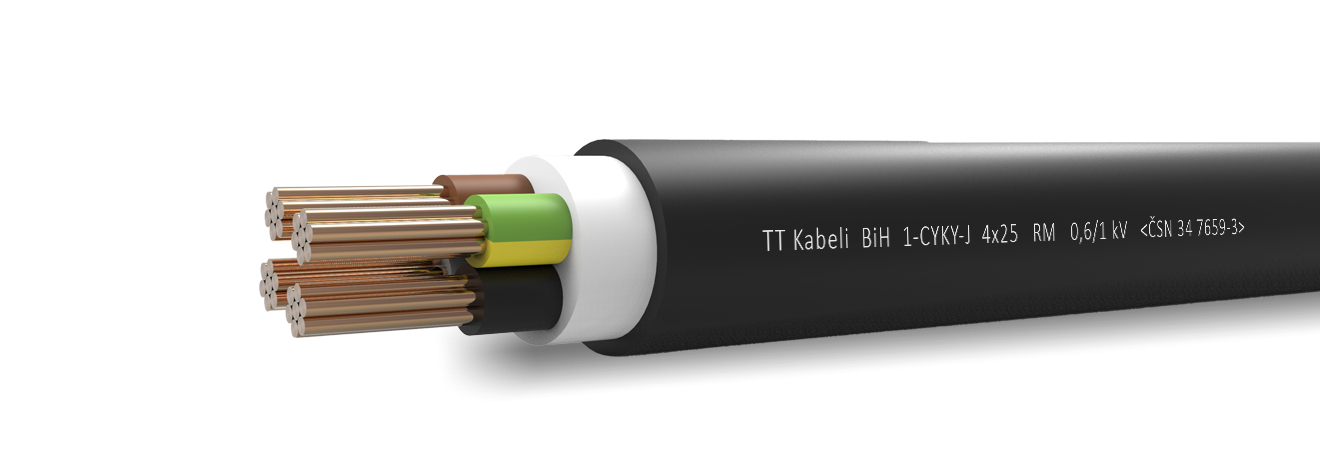

1-CYKY

Power cable 0,6/1 kV with Cu conductors, PVC insulated and sheathed

APPLICATION

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban
networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: : Cu, class 1 or 2 according to EN
60228
Insulation: PVC compound DIV 1
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound DMV 1

Tehnical characteristics

CPR class: Eca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C


Country: Czech Republic, Slovakia
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, PNE 34 7659-3
Type: Power Network & Local Distribution Cable, PVC Cables
Conformitè EuropëenneEZUIECREACHROHS
