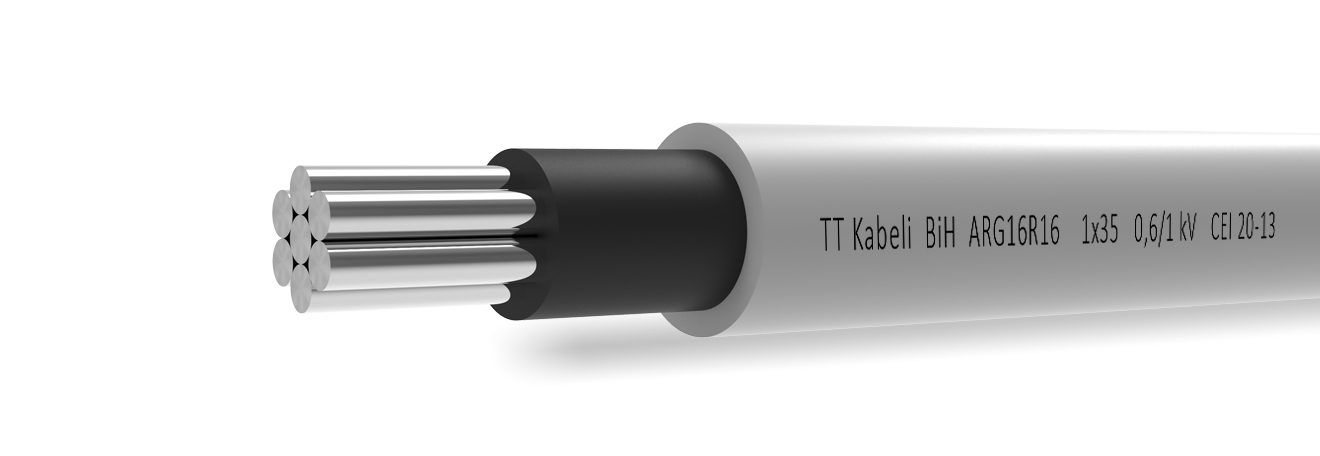

ARG16R16

Power cable 0,6/1 kV with Al conductors, rubber G16 insulated and PVC sheathed

APPLICATION

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc., where fire prevention safety measures are requested, for eleveted electricity and thermic strains.

Construction

Conductors: Al, class 2 according to EN 60228
Insulation: G16 rubber
Bedding: Extruded elastomere or plastomere
LS0H compound
Sheath: PVC compound R16 quality, gray

Tehnical characteristics

CPR class: Cca – s3,d1,a3
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Italy
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, PNE 34 7659-3
Type: LSZH Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneCPRIECREACHROHS
