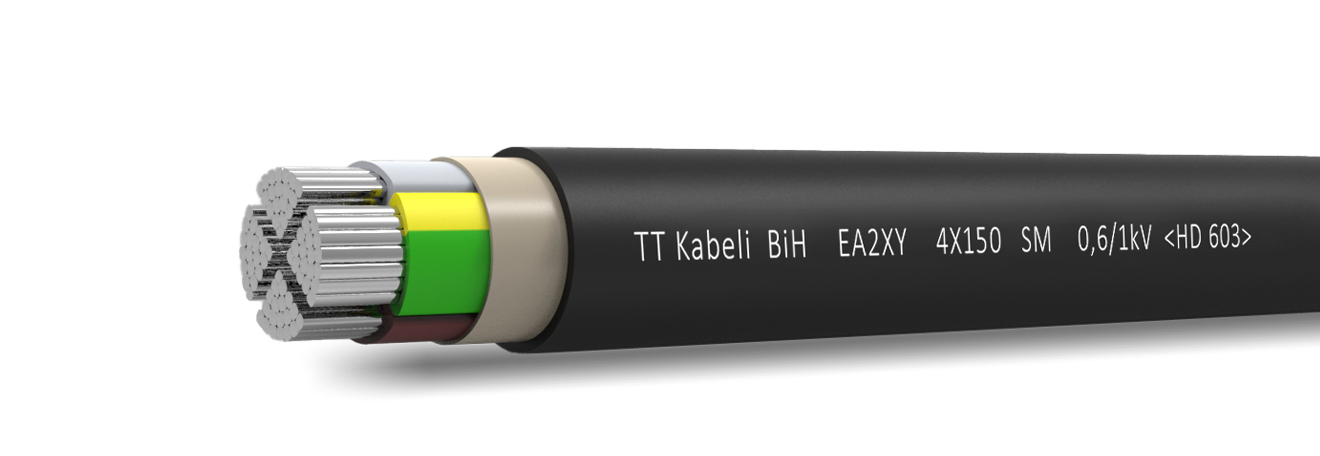

EA2XY

Power cable 0,6/1 kV with Al conductors, XLPE insulated and PVC sheathed

Application

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: Al, class 1 (RE/SE) or class 2 (RM/SM)
according to EN 60228
Insulation: XLPE compound DIX 1
Bedding: Extruded elastomere or plastomere compound
or plastic tape
Sheath: PVC compound DMV 1

Technical Characteristics

Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Austria, Bosnia and Herzegovina, Croatia, Montenegro, Serbia
Industry: Building & Construction, Switchgear
Standard: HD 603 S1, ÖVE E8200-603
Type: Fixed Wiring Cable, LSZH Cable, LV installation cables
