BFSI(EMC)

Power cable 0,6/1 kV halogen – free, low smoke fire resistant cable with Cu conductors

APPLICATION

Fire resistant security cables for installation everywhere where high safety requirements have a special significance e.g., in industrial complexes, power stations, public buildings, hotels, underground railway systems, hospitals etc. The copper screen can have 100% covering and complies with the EMC directive with right practicable installation. Installations in the open air, underground, indoors, in cable ducts. Not suitable for use in water. Cables may be layed directly in ground if installed properly and carefully acc. to REN leaf 9000 guide

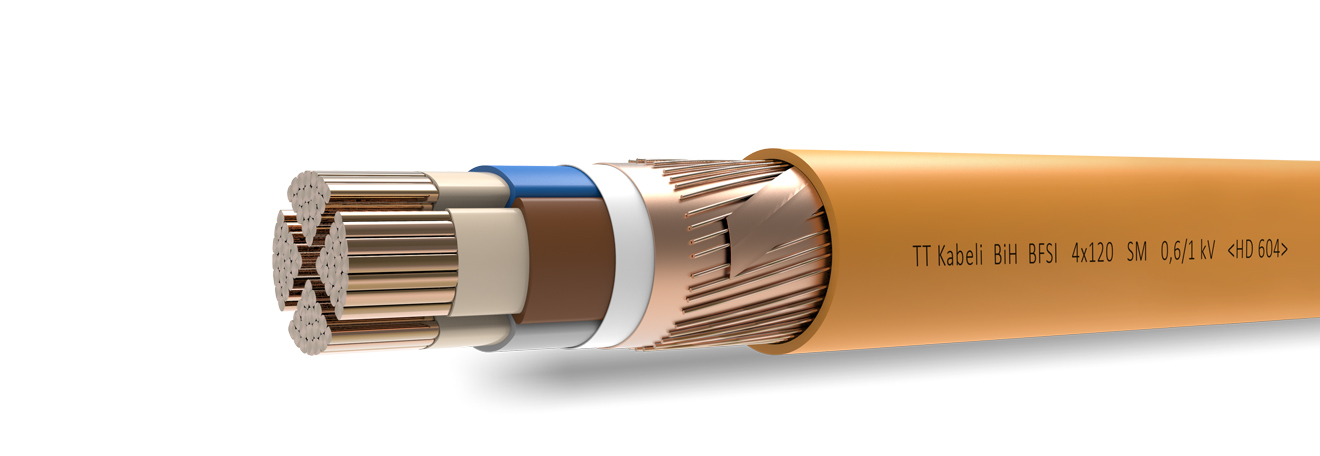

Construction

Conductors: Cu, class 1 or 2 according to EN
60228
Insulation: Mica tape and XLPE compound over it
Bedding: Extruded elastomere or plastomere halogen-free compound or plastic halogen-free tape
Concentric conductor: Cu foil tape (optional), Cu
wires with counter helix of Cu tape
Sheath: HFFR compound, type ST8 acc. to IEC
60502-1

Tehnical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -20°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Lowest temp. for fixed installation: -40°C


Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: EN 60332-1-2, EN 60332-3-24, EN 60754-1, EN 60754-2, EN 61034-2, HD 604 5D, IEC 60331-21, IEC 6052-1, SFS 4879
Type: Fire Performance Cable, Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
