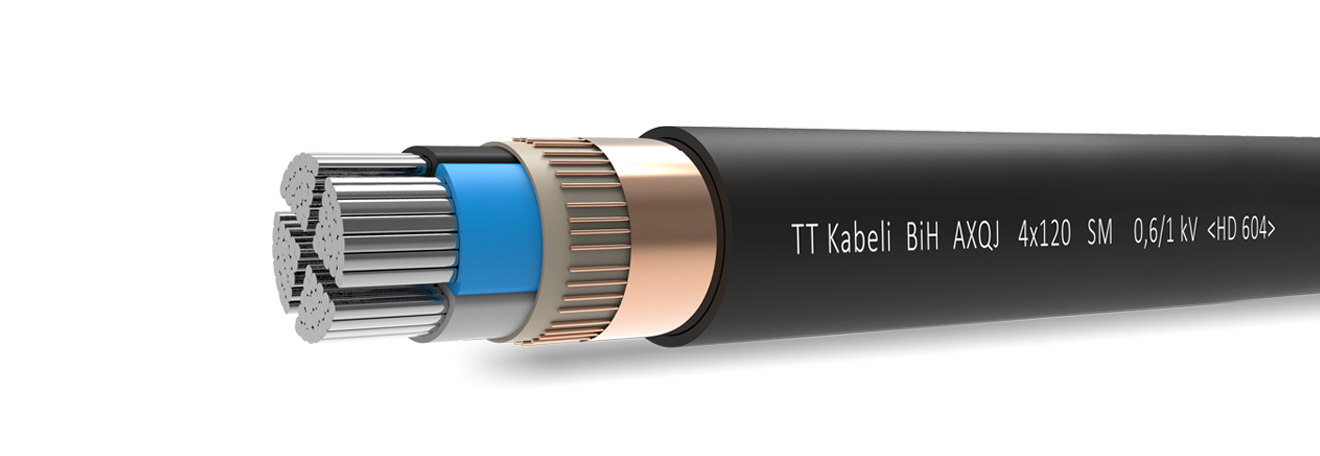

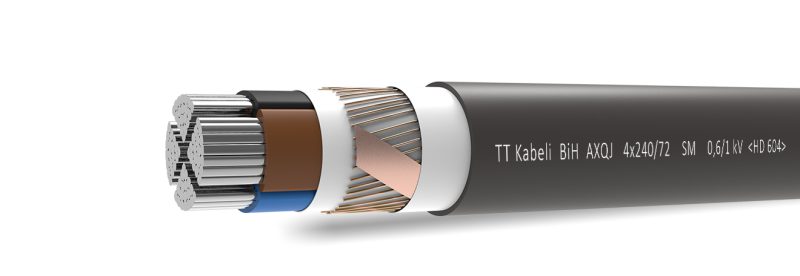

AXQJ, IFSI Al, AXCMK-HF

Power cable 0,6/1 kV with Al conductors, XLPE insulated and PE sheathed

APPLICATION

Power cable suitable for fixed installation in dry and damp environment, on or under plaster, on cable trays, same as in walls and concrete. Not intended for direct laying in ground or water. For outdoor application can be laid in tubes, but in that case should be taken all precautionary measures necessary to prevent water penetration into the tubes. Suitable for supply systems in an emergency. Appropriate for application in all situations where people and material goods need to be protected in case of fire. Recommended for public buildings frequented by a lot of people, and for buildings of high material value, for industrial complexes, electric power plants, transformer stations, municipal facilities, hotels, shopping malls, hospitals, schools, airports, underground railways and similar. Concentric conductor serves as electromagnetic screen, which could also be applied as neutral conductor.

Construction

Conductors: Al, class 2 according to EN 60228
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Concentric conductor: Cu wires with counter helix
of Cu tape
Sheath: HFFR compound

Tehnical characteristics

CPR class: Dca – s1,d2,a1
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Min. working temperature: -40°C
Fire properties: IEC 60332-1-2; IEC 60332-3-24
IEC 61034-2; IEC 60754-1
IEC 60754-2


Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, SFS 4879
Type: Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable, Screened cables
