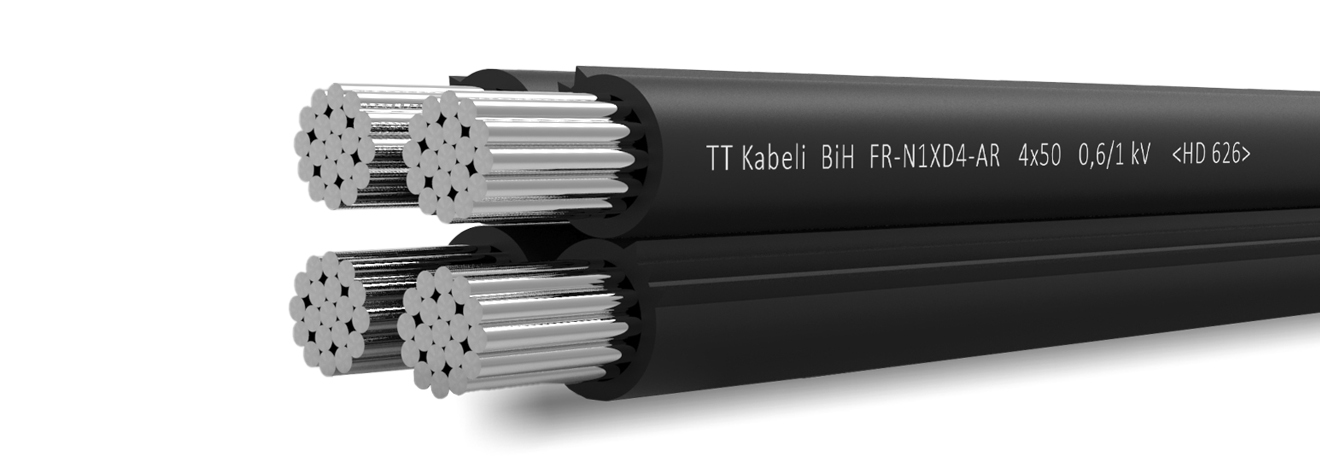

FR-N1XD4-AR (X00-A) ; FR-N1XD9-AR (X00/0-A)

XLPE insulated Aerial Bundled Cables

Application

For distributive low overhead network in the city, pros urban and rural areas. For supply of remote facilities and villages of temporary and permanent character. For above-ground house connections.

Construction

Phase conductor: Circular compacted Al rope,  class 2
Neutral conductor: Circular compacted Al or Al. Alloy rope, class 2
Insulation: XLPE compound

Technical characteristics

CPR Class: Fca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Max. conductor temperature: 80°C
Max. short-circuit temperature: 130°C




Country: Bosnia and Herzegovina, Croatia, France, Montenegro, North Macedonia, Serbia, Slovenia
Industry: Transmission, Distribution & Power Networks
Standard: HD 626 S1, JUS N.C5.250, NF C33-209
Type: Overhead Line, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
