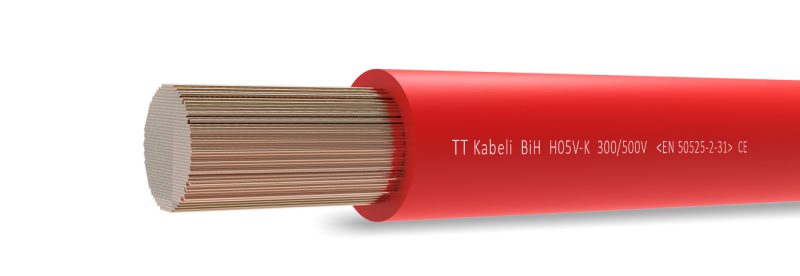

H05V-K

Low voltage 300/500 V flexible Cu conductor insulated with PVC

Download TDS...

APPLICATION

Flexible insulated conductor for wiring within electrical devices, lighting fixtures, switching- and distribution boxes, i.e. as bridge junction. Laid in dry areas, in closed electrical-installation conduits only for signaling and control circuits. Not suitable for direct application under plaster.

Construction

Conductors: Cu, class 5 according to EN 60228
Insulation: PVC compound, type TI 1 according to EN 50353-3
Color: Acc. to EN 50525-1: black, blue, brown, gray, orange, pink, red, turquoise, violet, white and green-yellow

Tehnical characteristics

Voltage rating (Uo/U): 300/500 V
Testing voltage: 2,0 kV
Max. working temperature: 70°C
Min. Laying teperature: -5°C
Ambient temp. range: -35°C do 35°C
Max. short-circuit temperature: 160°C
Min. bending radius: 8D
CPR classification: Eca
