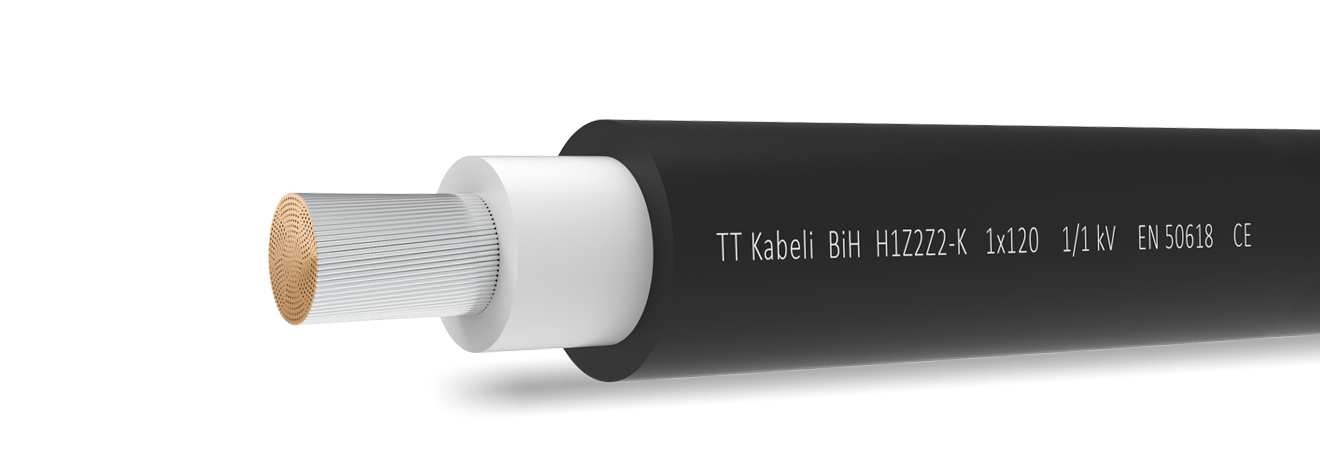

H1Z2Z2-K

Photovoltaic Solar Cable

Download TDS...
Download DOP...

APPLICATION

For free and stationary or for freely suspended outdoor and indoor cabling between the solar modules, or between the module strings and the DC/AC inverter, for example in line with HD 60364-7-712 on PV systems, and EN 50618 on H1Z2Z2-K cable type, etc….; Short circuit and earth fault protected per EN 50618, Annex A, and per HD 60364-5-52 Photovoltaic systems with DC system voltage up to 1800 V to ground. As per EN 50618, Annex A, inside electrical installation pipe/ duct/ channel, plaster, and appliance, as well as inside or connected to double insulated/ protected appliance or system of protection class II. AD8: Permanent water contact and submersion down to 1 metre in water depth.

Construction

Conductors: Tinned copper conductor, class 5
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound

Tehnical characteristics

CPR class: Eca
Test voltage: 6,5 kV
Rated voltage: 1/1 kV AC, 1,5/1,5 kV DC
Max. voltage: 1,8 kV
Min. temp. for cable laying: -25°C
Working temperature: -40°C to 90°C
Working temp. of max. 20000h: 120°C
Max. short-circuit temperature: 250°C
Min. bending radius: 4xD
Water Resistant: AD8
