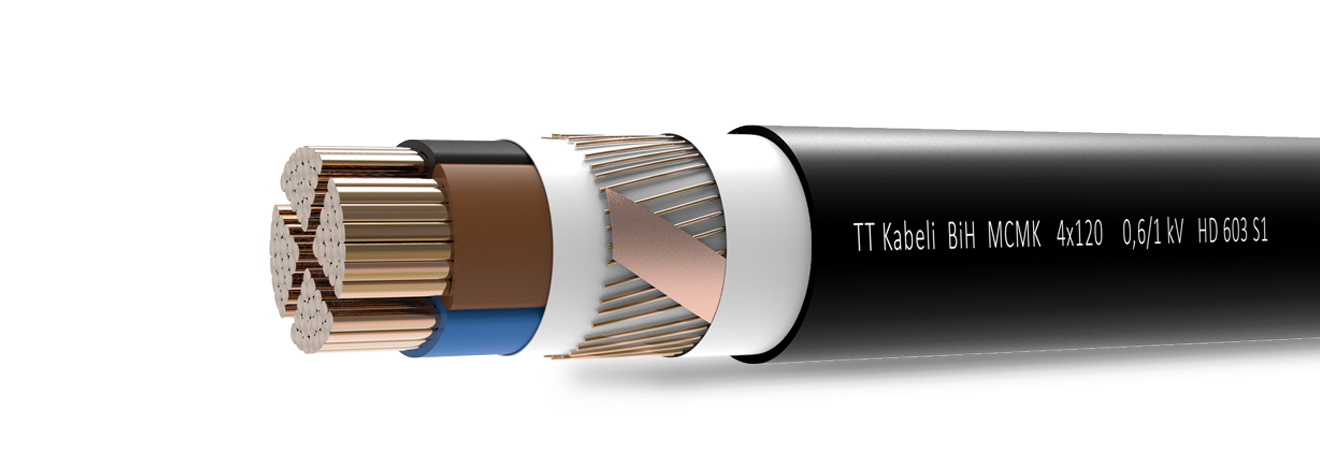

MCMK
Screened power cable 0,6/1 kV with Cu conductors, PVC insulated and sheathed
Application
Distribution power cable for static outdoor application (with protection against direct UV-irradiation), in ground, within facilities, in cable canals, in concrete, in conditions where there is a danger of possible mechanical damages, but where the cable is not exposed either to systematic mechanical stress or heavier tensile strain. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Concentric conductor can be used as neutral, protective or earth connection, and in situations where the insulation might be roughly damaged by some metal object, it acts as protection against contact voltage. Corrugated, concentric conductor construction enables establishing of several cable connections without cutting of conductor.
Construction
Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: PVC compound, type DIV 6
Bedding: Extruded filling compound or plastic tape
Concentric conductor: Copper wires and copper tape helically (spirally) applied
Sheath: PVC compound DMV 5
Technical characteristics
CPR class (acc. to EN 13501-6): Eca
Test voltage: 4 kV AC, 50 Hz, 5 min.
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D; multicore- 12D, D – overall diameter
Min. laying temperature: -15°C
Max. conductor operating temperature: 70°C
Max. short-circuit temperature: 160°C
Working temperature range: -35°C to 70°C
Flame retardant: EN 60332-1-2
Country: Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Data Centres, Transmission, Distribution & Power Networks
Standard: HD 603 S1, p.3F, SFS 4880
Type: Industrial Cable, Power Network & Local Distribution Cable, PVC Cables, Screened cables
