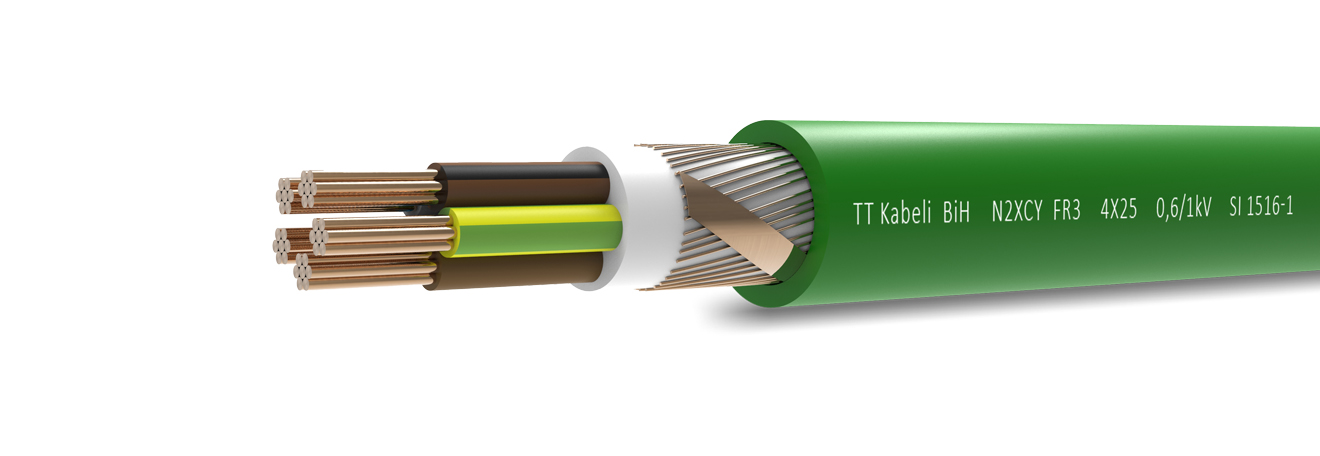

N2XCY FR3

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed

Application

Distribution and signalling power cable for static outdoor application (with protection against direct UV rradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions requiring increased electric protection and protection against mechanical damages. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants and for connection of signalling devices in industry, traffic and similar. Concentric conductor can be used as neutral, protective or earth connection, and if there is a danger of damages caused by digging, it acts as protection against contact voltage in case of rough insulation damage.

Construction

Conductors: Al, class 2 according to EN 60228
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere compound or plastic tape
Concentric conductor: Cu wires with counter helix of Cu tape
Sheath: PVC compound, fire retardant, green

Technical characteristics

CPR class: Eca
Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D; multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C




Country: Iceland, Israel
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1, IS 1516-1
Type: Industrial Cable, Power Network & Local Distribution Cable, Screened cables
