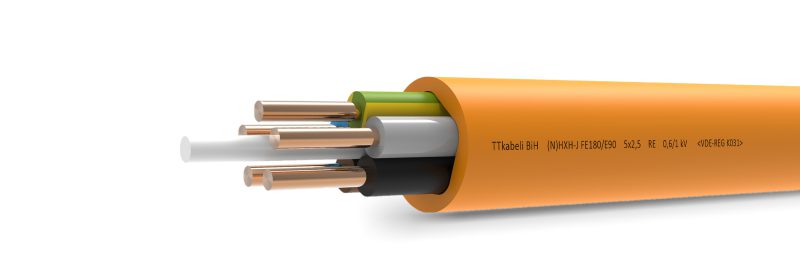

(N)HXH (FRHF) FE180/E90
Halogen-free installation cable 300/500 V, with improved properties under fire, and 90 minute circuit integrity maintenance.
Application
These cables are suitable for fixed installation in dry and damp environment, on or under plaster, on cable trays, same as in walls
and concrete. Not intended for direct laying in ground or water. For outdoor application can be laid in tubes, but in that case should
be taken all precautionary measures necessary to prevent water penetration into the tubes. Suitable for electric installations with
marked fire-fighting and function preserving requirements, for alarm systems, fire sensors, evacuation elevators and other supply systems in an emergency. Appropriate for application in all situations where people and material goods need to be protected in case of fire. Recommended for public buildings frequented by a lot of people, and for buildings of high material value, for industrial complexes, electric power plants, transformer stations, municipal facilities, hotels, shopping malls, hospitals, schools, airports, underground railways and similar. Important – these cables should not be laid on common trays, but on fire-resistant trays which retain their geometry in case of fire. Keeping these cables in the same position in case of fire, enables additional protection of cable conductivity, by means of the mineral layer discharged around the cable at increased temperature.
Construction
Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: Ceramizable (silicone) compound
Sheath: LSZH compound, orange
Technical characteristics
Test voltage: 300/500 V
Rated voltage: 0,6/1 kV
Bending radius (min): 12 x D
Min. laying temperature: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 160°C
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-24, Cat. C
Halogen free: IEC 60754
Low smoke emission: IEC 61034
Circuit integrity, FE180: IEC 60331-21, IEC 60331-11
Circuit integrity, E30-E60: VDE 4102-12
Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: DIN VDE 0266, HD 604 S1
Type: Fire Performance Cable, LSZH Cable, Power Network & Local Distribution Cable
