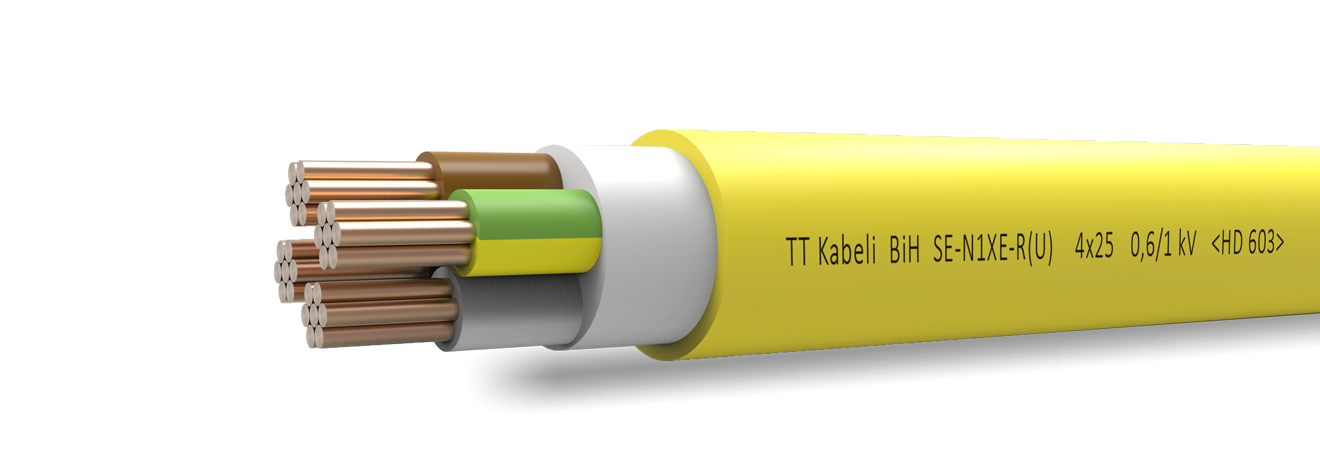

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and HDPE sheathed


This cable is used as a power distribution cable in power stations, industrial installations and switchgears as well as in local mains. Can be laid directly in ground but on sand base to avoid cable damaging. Cable laying must be performed only by qualified personell and according to national standards and regulations. For fixed installation underground, in interior premises, cable ducts, in the open air, in water – as permitted by the local building regulations – under severe mechanical stressing during installation and operation


Conductors: . Cu, class 2 according to EN 60228
Insulation: : XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere compound
Sheath: HDPE compound, DMP 7 type

Tehnical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): 16xD
Min. laying temperature: -20°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Min. bending radius during installation: 8xD

Country: Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, SS 424 14 18
Type: Industrial Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
