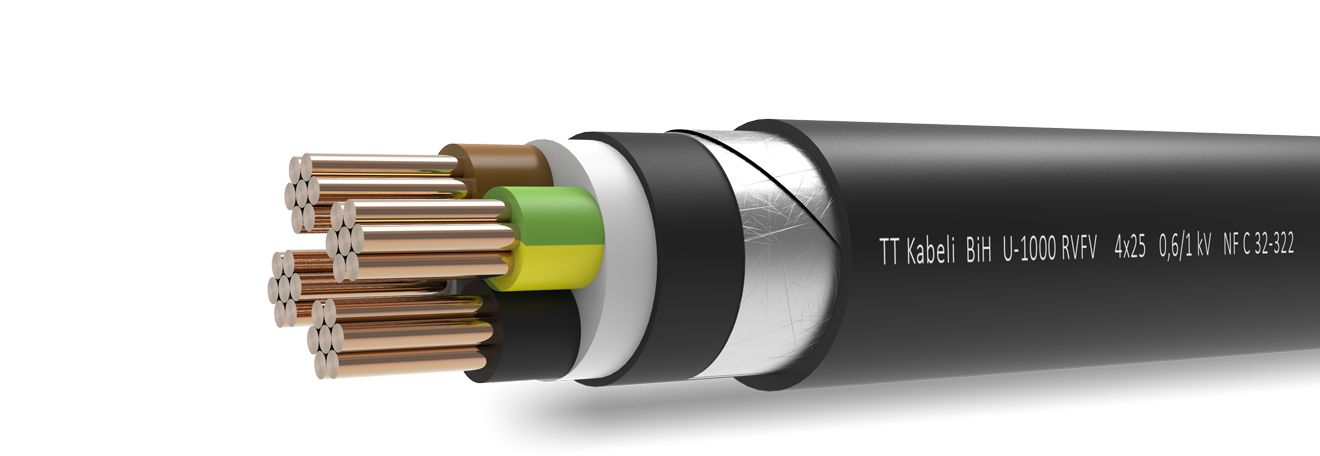

U-1000 RVFV

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed

APPLICATION

Distribution power cable for static application, mostly in ground, but also in water, within facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial
plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

Construction

Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Armour: Two galvanized steel tapes
Sheat: PVC compound

Tehnical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
