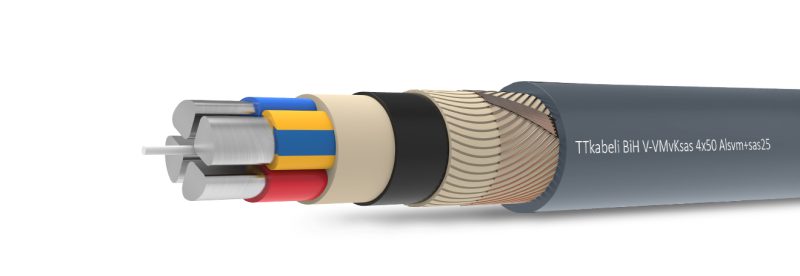

Power cable 0,6/1 kV with Al conductors, insulated and sheathed with PVC


A power and control cable for general use in low voltage installations up to 1 kV. Suitable for applications indicated in NEN 1010. Suited for direct burial (also in wet conditions but not directly in water) and above ground, as power cable for mains and distribution boards


Conductors: Al, class 1 according to EN 60228
Insulation: PVC compound
Inner sheath: PVC compound
Bedding: Extruded elastomere or plastomere compound
Concentric conductor: Cu wires with copper counter helix tape
Sheath: PVC compound, UV resistant

Tehnical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. temp. for cable laying: 0°C
Max. working temperature: 70°C
Max. short-circuit temperature: 160°C
Min. bending radius: 12D
Min. bending radius during installation: 10D

Country: Netherlands
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: NEN HD 603 S1
Type: Industrial Cable, Power Network & Local Distribution Cable, PVC Cables, Screened cables
Conformitè EuropëenneIECREACHROHS
