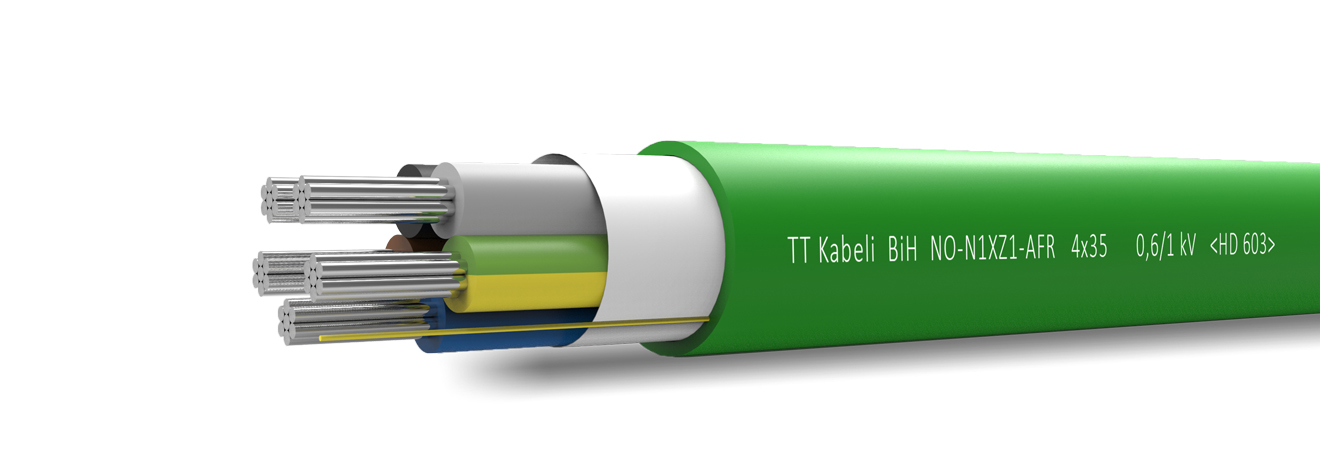

NO-N1XZ1-AFR

Power cables with XLPE insulation and HFFR sheath

Application

Halogen-free, flame retardant and self-extinguishing power cable in aluminum. These are important features to protect life and property in case of fire. The cable is constructed for open fixed laying, indoors and outdoors, in pipes or direct burial/water, not for atex areas. The cable is UV resistant and can be plowed. Suitable for road lighting, distribution, supply, distribution and on cable ladders. The cable comes with a stripping cord for easy dismantling of outer jacket. Important that the cable is sealed (with end cap, not tape) immediately after cutting to prevent water penetration through the end.

Construction

Conductors: Annealed Al rope
Insulation: XLPE compound
Bedding: Watertight tape
Sheath: HFFR compound

Technical Characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): multi-core 12D
Min. laying temperature: -20°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
