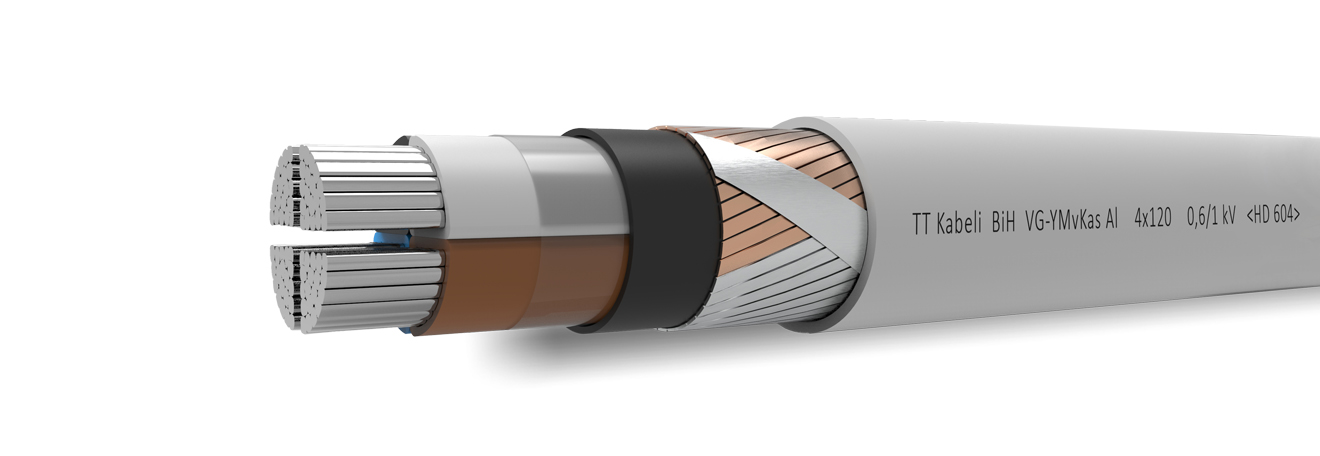

VG-YMvKas AL

Power cable 0,6/1 kV with Al conductors, XLPE insulated and HFFR sheathed

Application

A power and control cable for general use in low voltage installations up to 1 kV. Suitable for applications indicated in NEN 1010. Suited for direct burial (also in wet conditions but not directly in water) and above ground, as power cable for mains and distribution boards.

Construction

Conductors: Cu, class 2 according to EN 60228
Insulation: : XLPE compound
Inner sheath: PVC compound
Armour: Galvanized steel wires armour with copper
earth wires and galvanizet steel counter helix tape
Sheat: PVC FR compound, UV resistant

Technical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): 16D;
Min. laying temperature: 0°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Min. bending radius during installation: 10D




Country: Netherlands
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 604 S1, IEC 60502-1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable, Screened cables
Conformitè EuropëenneIECREACHROHS
