BFSI / FRHF

Application

Fire resistant security cables for installation in locations with high safety requirements, such as industrial complexes, power stations, public buildings, hotels, underground railway systems, hospitals etc. Installations in the open air, underground, indoors, in cable ducts. Not suitable for use in water. Cables may be laid directly in ground if installed properly and carefully acc. to REN leaf 9000 guide. Expected lifetime 50 years, provided proper installation, load and ambient temperature.

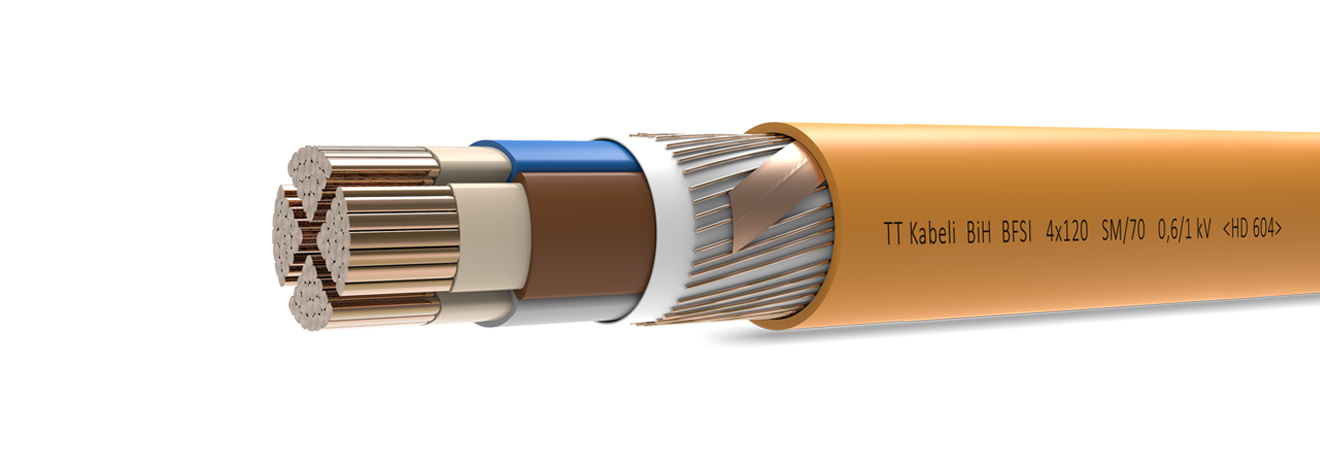

Construction

Conductors: Cu, class 2 according to EN 60228
Primary insulation: mica tape
Insulation: XLPE compound
Bedding: Extruded halogen-free compound or plastic halogen-free tape
Concentric conductor: Copper wires and copper tape helically (spirally) applied
Sheath: HFFR compound, UV resistant

Technical characteristics

Test voltage: 4 kV, AC, 50 Hz, 5 min. per core
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D; multicore – 12D
Lowest temp. For fixed installation: -40°C
Min. laying temperature: -20°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Cicruit intergrity (E90): DIN 4102-12
Low smoke emitting: EN 61034-2
Halogen free: EN 60754-1; EN 60754-2, 0,5% HCI innhold
Vertical flame spread: EN IEC 60332-3-24
Flame propagation: EN 60332-1-2
Circuit integrity: IEC 60331-21, IEC 60331-1, IEC 60331-2, IEC 60331-11, IEC 60331-25

Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: EN 60332-1, EN 60332-1-2, EN 60332-2, EN 60332-21, EN 60332-3-24, EN 60754-1, EN 60754-2, EN 61034-1, EN 61034-2, HD 604 5D, IEC 60331-11, IEC 60331-2, IEC 60331-21, IEC 60331-25, IEC 60502-1
Type: Fire Performance Cable, LSZH Cable, Power Network & Local Distribution Cable, Screened cables
