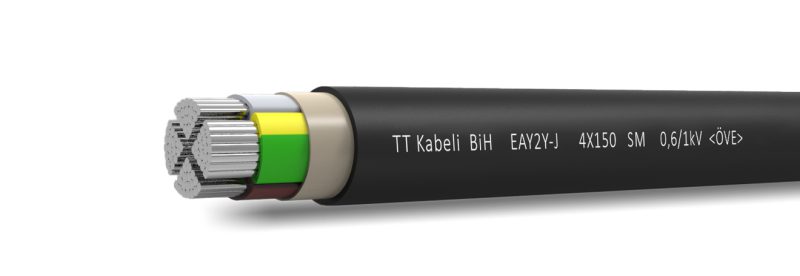

EAY2Y

Power cable 0,6/1 kV with Al conductors, PVC insulated and HDPE sheathed

Application

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: Al, class 1 or 2 according to EN 60228
Insulation: PVC compound DIV 1
Bedding: Extruded elastomere or plastomere compound or plastic tape
Sheath: HDPE compound DMP 1

Technical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Min. temp. for cable laying: -5°C
Max. working temperature: 70°C
Max. short-circuit temperature: 160°C
Min. bending radius: single-core – 15D; multicore – 12D
CPR class: Fca
