EX

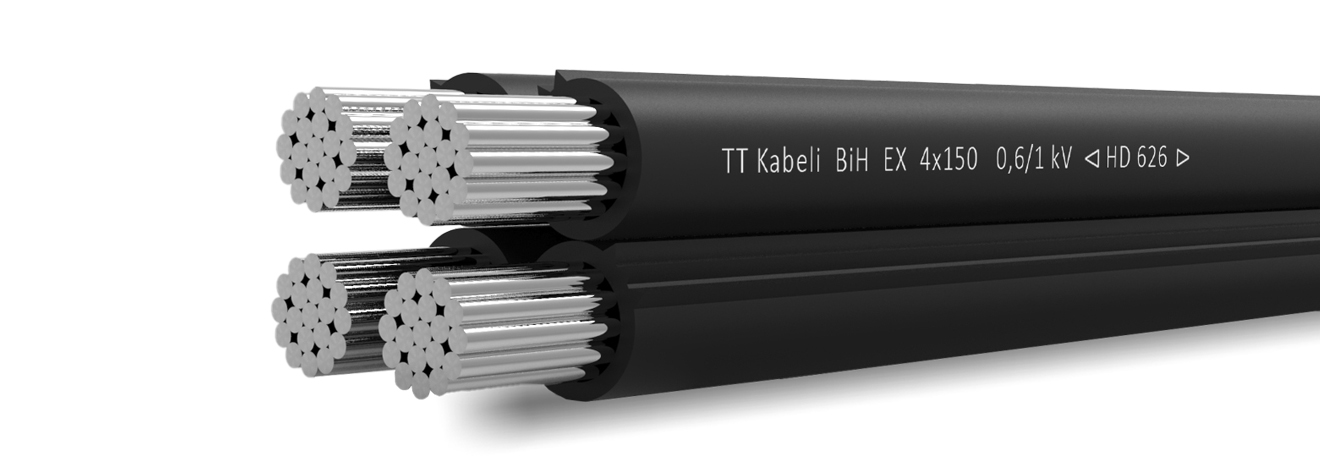

Overhead power cable 0,6/1 kV with Al conductors, PE insulated

Application

For distributive low overhead network in the city, pros urban and rural areas.For supply of remote facilities and villages of temporary and permanent character.For above-ground house connections.

Construction

Phase conductors: Al, class 1 or 2 according to EN 60228, HD 626 S1, p.3I
Neutral conductors: Al, class 2 according to EN
60228, HD 626 S1, p.3I
Insulation: PE compound TIP 5

Technical characteristics

CPR class: Fca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 135°C


Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 626 S1, part 3I
Type: Armoured Cable – SWA & AWA, Overhead Line, Power Network & Local Distribution Cable
Conformitè EuropëenneREACHROHS
