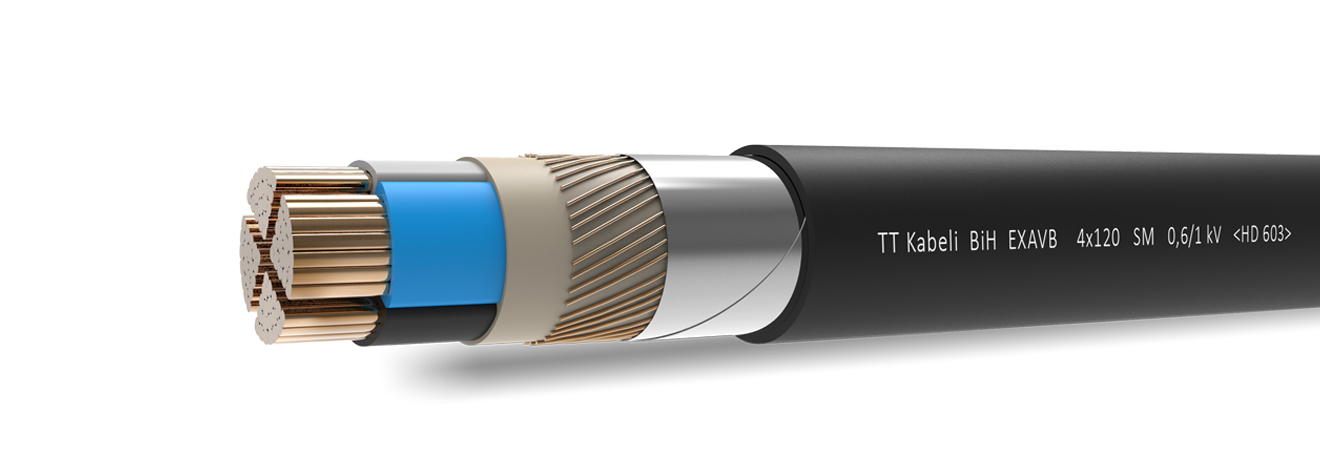

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed


EXAVB is an armoured energy cable for low voltage installations of 0.6/1kV preventing a risk of mechanical damage.
The cable is UV resistant. EXAVB may be laid directly in the ground without additional mechanical protection, within facilities, in cable canals. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. The cable is suitable for use at ambient temperatures between -20°C and + 60°C. The safety circuit under the armour is suitable for grounding conductors up to 6mm²


Conductors: . Cu, class1 or 2 according to EN 60228
Insulation: XLPE compound
Bedding: Safety circuit with copper wires
Concentric conductor: Galvanized steel tapes or steel wires
Sheath: PVC compound, UV resistant

Tehnical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
Min. laying temperature: 5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Operating temperature: -20°C to 60°C

Country: Belgium
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: IEC 60502-1, NBN HD 603 S1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable, Screened cables
Conformitè EuropëenneIECREACHROHS
