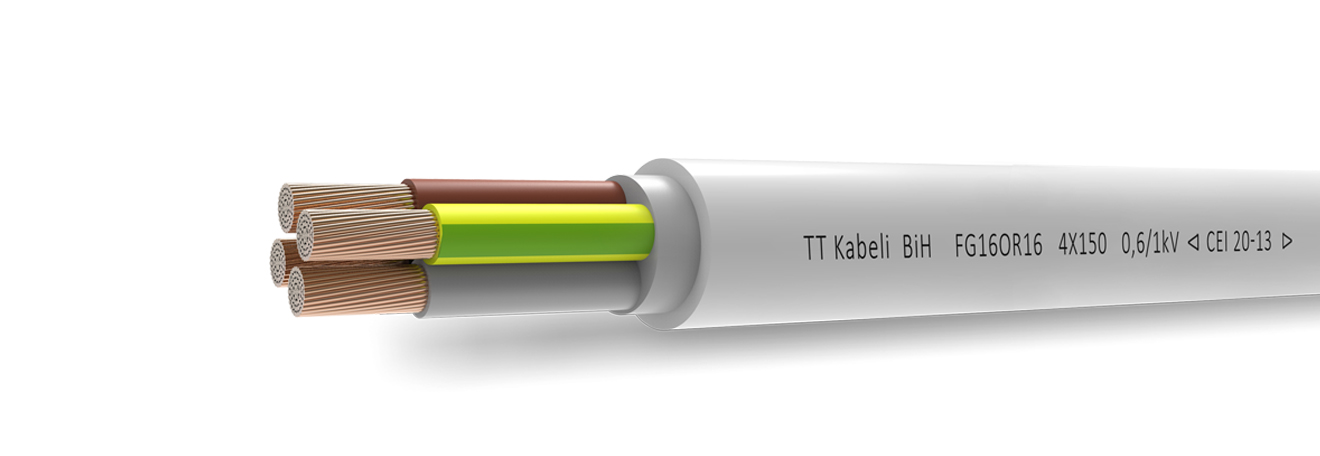

FG16OR16

Power cable 0,6/1 kV with Cu conductors, rubber G16 insulated and PVC sheathed

APPLICATION

Reference Guidance CEI 20-67: Cable suitable for energy supply in industry, building sites and construction industry. For fixed wiring indoors and outdoors, even wet; for direct and indirect underground wiring. Suitable for installation at open air, on walls, metal structures, cable trays, pipes, wiring holders and similar devices. Suitable for bundle installations in environments at risk of fire.

Construction

Conductors: Cu, class 5 according to EN 60228
Insulation: Rubber compound G16 quality
Bedding: Extruded elastomere or plastomere compound
Sheath: PVC compound R16 quality, grayy

Tehnical characteristics

CPR class: Cca – s3,d1,a3
Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 6D
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Italy, Slovenia
Industry: Building & Construction, Data Centres, Transmission, Distribution & Power Networks
Standard: CEI 20-13, IEC 60502-1
Type: Fixed Wiring Cable, Industrial Cable, Power Network & Local Distribution Cable
