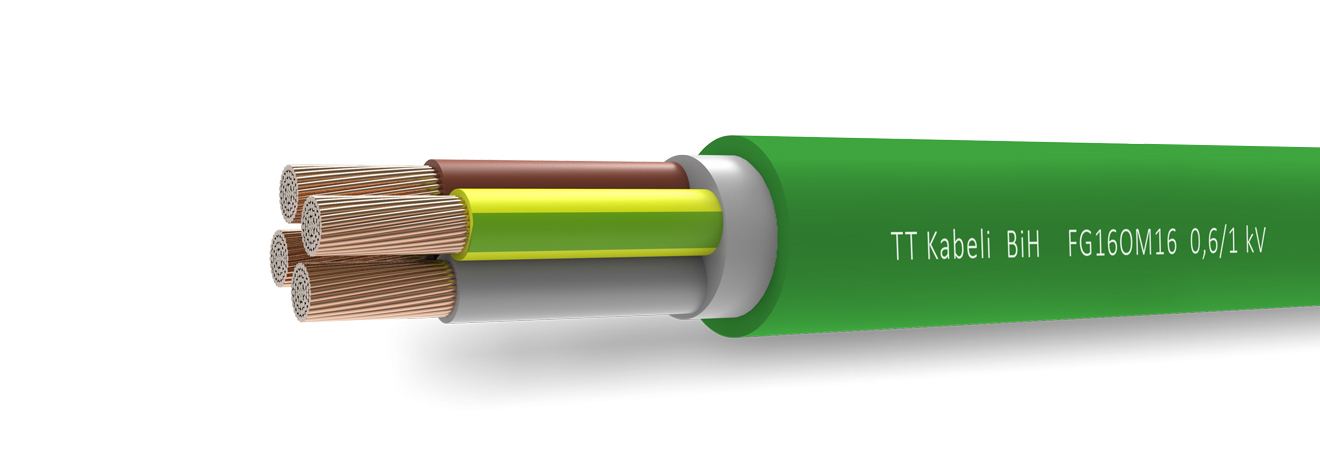

FG16OM16

Power cable 0,6/1 kV with Cu conductors, rubber G16 insulated and HFFR sheathed

Application

Reference Guidance CEI 20-67:

Particularly suitable for places where there is a risk of fire and high presence of people where it is essential to guarantee the preservation and preservation of plants and equipment from the attack of corrosive gases (offices, schools, supermarkets, cinemas, theaters, discos etc.). Suitable to be used indoor or outdoor, even in wet environments; it can be fixed on walls or metal structures, free in air, inside pipes or similar system. Suitable also for laying underground.

Construction

Conductors: Cu, class 5 according to EN 60228
Insulation: Rubber compound G16 quality
Sheath: LS0H compound M16 quality, geen

Technical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. installation temperature: 0°C
Min. working temperature: -15°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Min. bending radius: single-core – 4D
Max. tensile stress: 50 N/mm²
CPR classification: Cca – s1,d1,a1




Country: Italy
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: CEI 20-13, CEI-UNEL 35324, CEI-UNEL 35328
Type: LSZH Cable, Power Network & Local Distribution Cable
