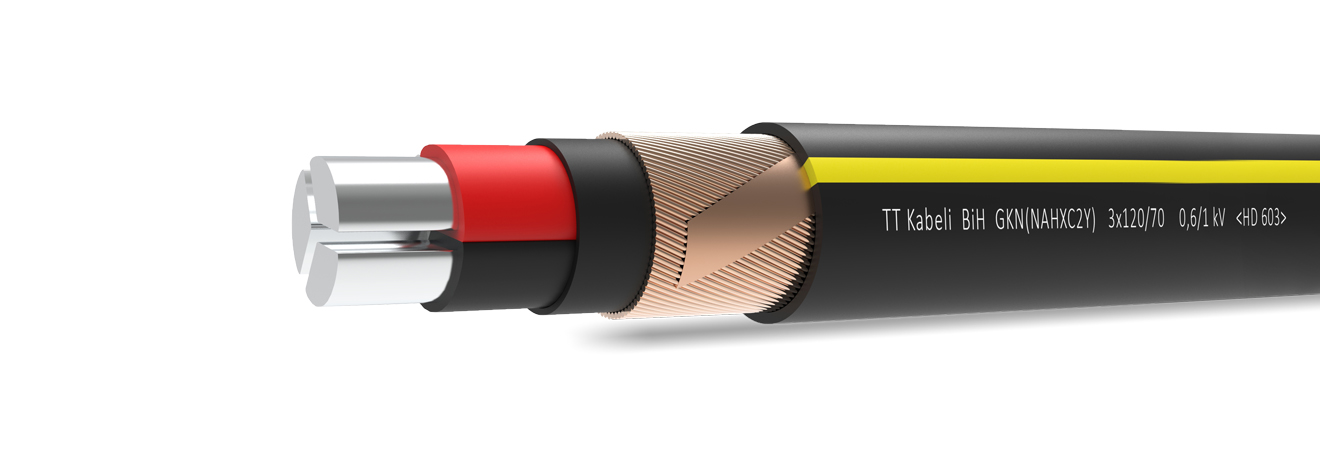

Low voltage power cables with cross-linked HEPR insulation and HDPE sheath with concentric conductor


In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.)


Conductors: Al, class 1 or 2
Insulation: Cross-linked HEPR compound
Bedding: Extruded elastomere or plastomere compound or plastic tape
Concentric conductor: Cu wires with counter helix of Cu tape
Sheath: PE compound

Tehnical characteristics

Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): 12xD
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C

Country: Switzerland
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1
Type: Instrumentation Cable, PE Cables, Power Network & Local Distribution Cable, Screened cables
Conformitè EuropëenneIECREACHROHS
