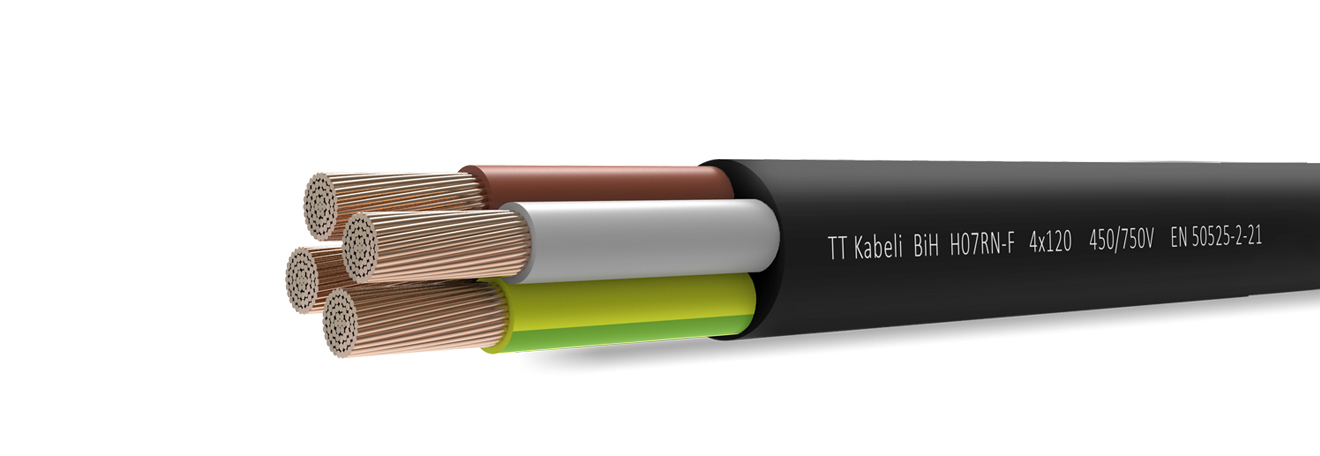

H07RN-F

Low voltage 450/750 V flexible Cu cables insulated and sheathed with rubber

APPLICATION

Multicore cables with rubber insulation and sheathing, intended for mobile and portable receivers. These cables are
manufactured in accordance with a harmonized standard (H), intended to support rated voltage of 450/750V (07), with rubber insulation (R) and fire-retardant chloroprene rubber (N), with flexible conductors (F). Recommended application: the cables are intended for powering electrical mobile and portable receivers, in household and industrial applications, working in temperate climate conditions.

Construction

Conductors: Cu, class 5 according to EN 60228
Insulation: Rubber compound, type EI 4 according to EN 50363-1
Sheath: Rubber compound, type EM 2 according to EN 50363-2-1

Tehnical characteristics

CPR class: Eca
Test voltage: 2,5 kV
Rated voltage: 450/750 V
Min. ambient temp. during installation: -25°C
Max. conductor temperature: 60°C
Max. short-circuit temperature: 200°


Country: Austria, Bosnia and Herzegovina, Croatia, Czech Republic, Denmark, France, Germany, Hungary, Italy, Montenegro, Netherlands, North Macedonia, Poland, Serbia, Slovakia, Slovenia
Industry: Building & Construction
Standard: EN 50525-2-31, EN 60332-1-2
Type: LV installation cables, Rubber Flexible Cable
Conformitè EuropëenneCPRIECREACHROHS
