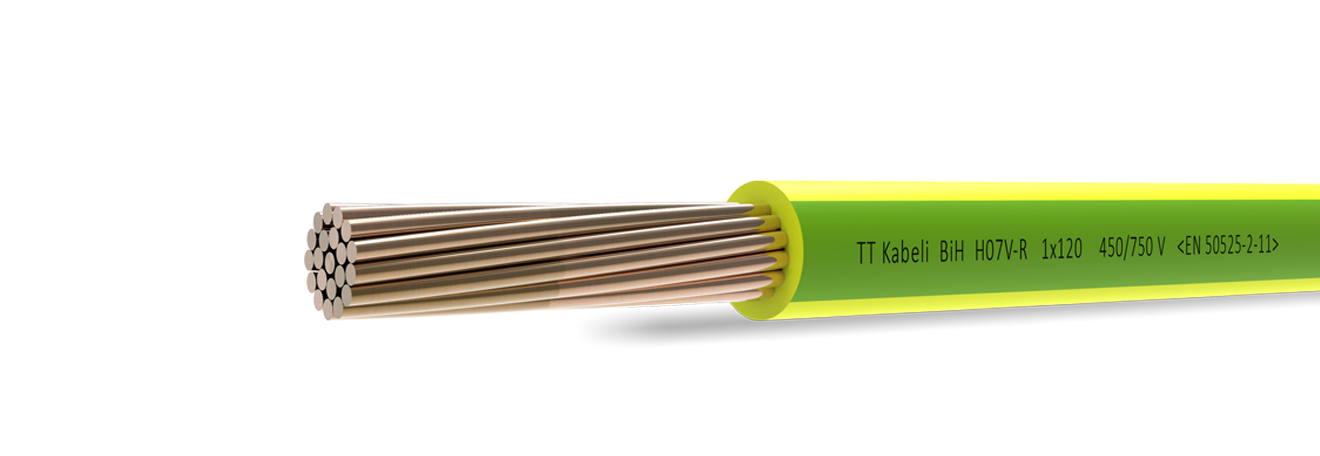

H07V-R

Low voltage 450/750 V Cu conductor insulated with PVC

APPLICATION

Insulated conductor used for laying in electric-installation tubes, under and on plaster installation in dry rooms
and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.

Construction

Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: PVC compound, type TI 3 according to EN 50353

Tehnical characteristics

Test voltage: 2,5 kV
Rated voltage: 450/750 V
Min. bending radius: 6D
Max. conductor temperature: 90°C
Max. short-circuit temperature: 160°C


Country: Bosnia and Herzegovina, Croatia, Czech Republic, Hungary, Montenegro, North Macedonia, Poland, Serbia, Slovakia, Slovenia
Industry: Building & Construction, Data Centres, Switchgear
Standard: EN 50525-2-31, IEC 60227
Type: Fixed Wiring Cable, LV installation cables, PVC Cables
Conformitè EuropëenneIECREACHROHS
