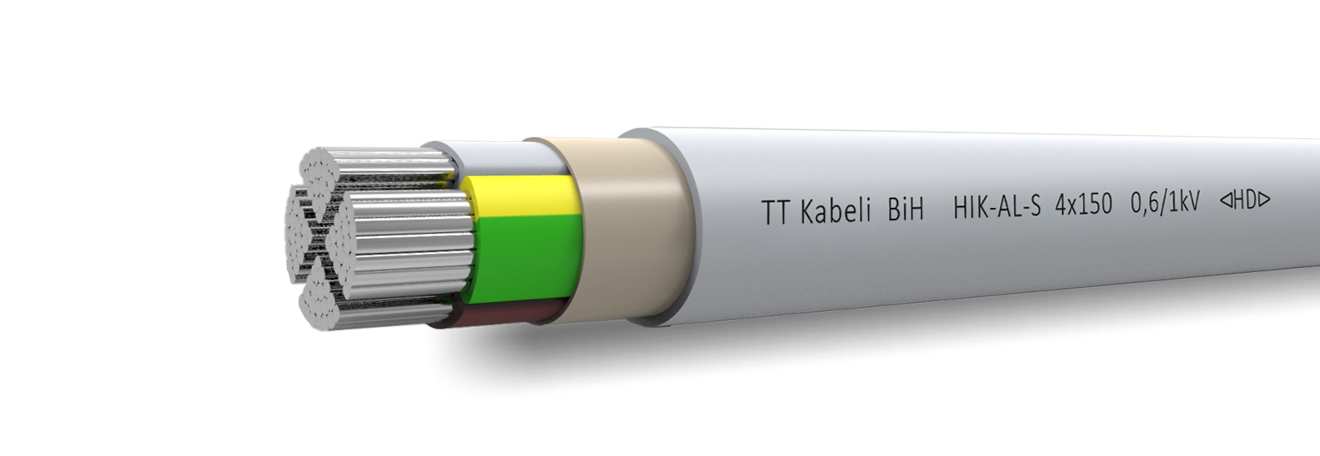

HIK-AL-S Eca
Power cable 0,6/1 kV with Al conductors, XLPE insulated, with halogen-free sheath
APPLICATION
Halogen-free UV resistant cable for fixed installation in buildings, conduits, ducts, in open air and in the ground. Easy handling and installation thanks to annealed aluminium conductors. The insulation must not be exposed to direct UV radiation. Installation acc. to the Danish Heavy Regulations.
Construction
Conductors: : Al, class 2 according to EN 60228
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: Halogen-free compound
Tehnical characteristics
Test voltage: 4 kV AC, 50 Hz, 5 min. per core
Rated voltage: 0,6/1 kV AC; 1,5 kV DC
Min. bending radius: multicore – 15D,
D – overall diameter
Min. laying temperature: -0°C to 50°C
Max. cond. operating temperature: 90°C
Max. short-circuit temperature: 250°C
Working temperature: -40°C to 90°C
Fire properties: EN 60332-1-2
Low smoke: acc. to EN 61304
CPR class: Eca
Country: Denmark, Finland, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1, p.5B
Type: Fire Performance Cable, LSZH Cable, Power Network & Local Distribution Cable
