IFSI-EMC Al, AXQJ-EMC

APPLICATION

EMC shielded power cable with aluminium conductors. Halogen free, flame retardant and self-extinguishing in the event of fire. In case of fire, smoke emission is minimal, transparent and non-corrosive to electronic equipment. For fixed installation, indoors, outdoors, in ducts, ground or water Suitable for switchgear and potentially explosive areas. Can be plowed down if proper precautions are taken. The copper screen provides 100% coverage and complies to EMC Directive when installed correctly. Expected lifetime 50 years, provided proper installation, load and ambient temperature.

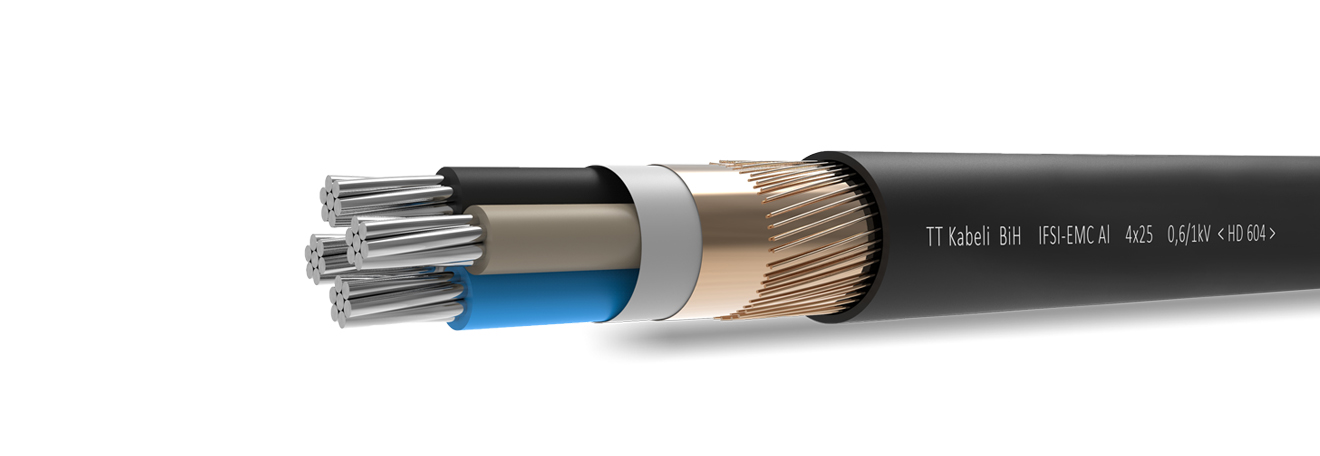

Construction

Conductors: Al, class 2 according to EN 60228
Insulation: XLPE compound
Bedding: Halogen-free plastic tape
Concentric conductor: Cu foil tape and Cu wires with counter helix of Cu tape
Outer sheath: Halogen-free compound, black, UV resistant

Tehnical characteristics

CPR class: Dca- s1, d2, a1
Test voltage: 4 kV AC, 50 Hz, 5 min. per core
Rated voltage: 0,6/1 kV
Min. bending radius: multicore : -12D, D – overall diameter
Min. temp. for cable laying: -20°C (during installation below 0°C special precausion is needed)
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Low smoke emitting: EN 61034-2
Halogen free: EN 60754-1; EN 60754-2
Vertical flame spread: EN IEC 60332-3-24
Flame propagation: EN 60332-1-2
CPR class: EN 50575, EN 13501-6

Country: Denmark, Estonia, Finland, Lithuania, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 604 5D, HD 604 S1, IEC 60502-1
Type: Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable, Screened cables
