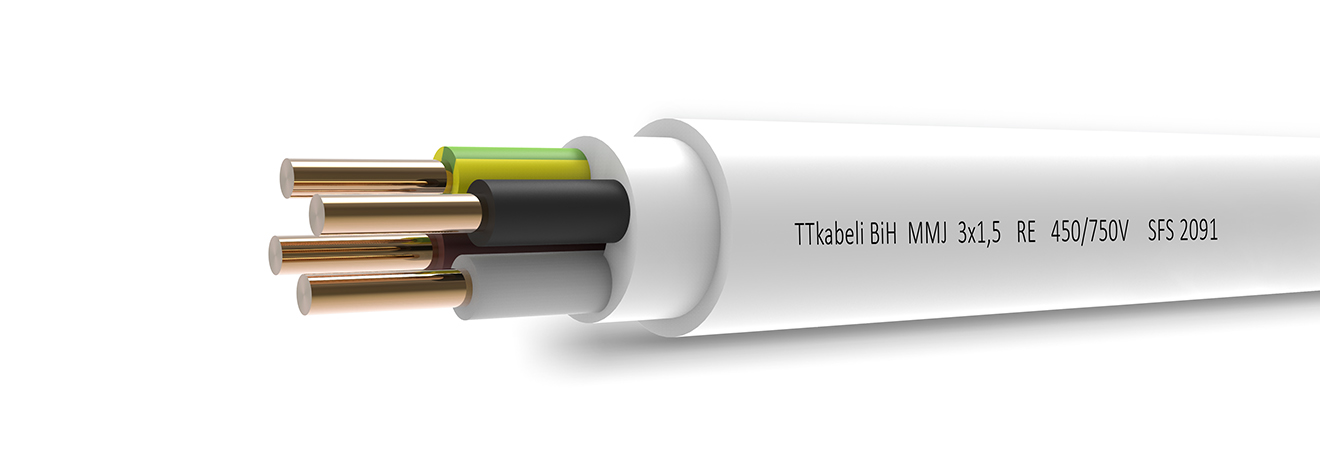

MMJ 450/750V

Installation cables 450/750 V with PVC insulation and sheath

Application

For fixed surface and flush-mounted installations, indoors and outdoors. Also suitable for installation in a slot covered with
plaster as specified e.g. in SFS 6000.
• Not suitable for installation directly in ground nor directly in concrete without protective ducting.
• Not for installations subject to electrical interference (see MCCMK).
• Direct sunlight (UV) may slightly alter the colour of the sheath. General guide to use and current carrying capacities according to SFS 6000.

Construction

Conductors: Cu, class 2 according to EN 60228
Insulation: PVC compound
Bedding: Extruded polymer
Sheath: PVC compound, UV resistant

Technical characteristics

CPR class: Eca
Test voltage: 2500 V
Rated voltage: 450/750 V
Bending radius (min): 12 D
Min. laying temperature: -15°C
Working temperature: -50°C do 90°C
Max. short-circuit temperature: 160°C




Country: Denmark, Finland, Norway, Sweden
Industry: Transmission, Distribution & Power Networks
Standard: SFS 4880
Type: Industrial Cable, Power Network & Local Distribution Cable, PVC Cables, Screened cables
