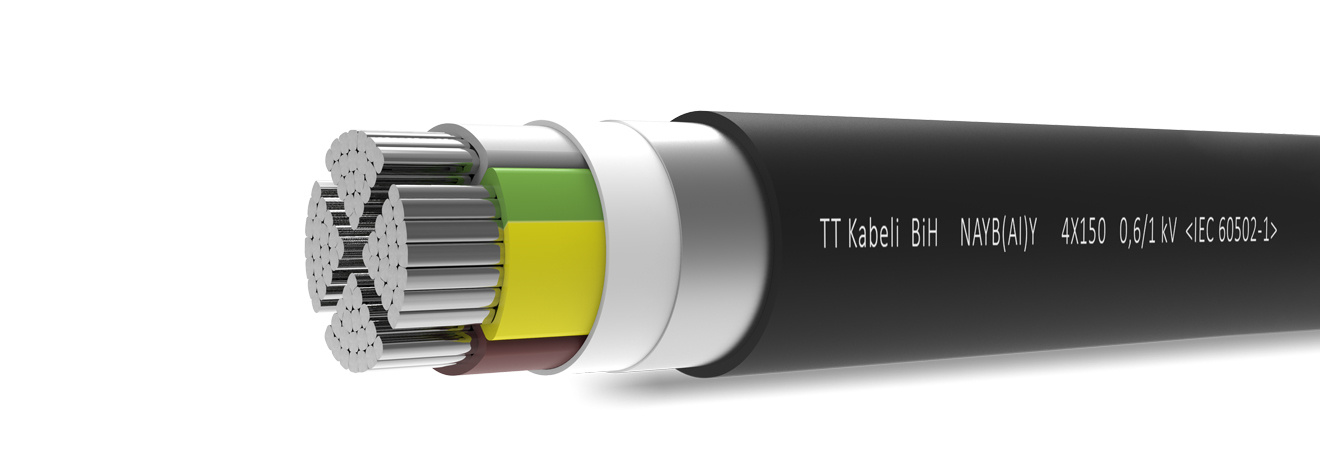

NAYB(Al)Y

Power cable 0,6/1 kV with Al conductors, PVC insulated and sheathed

Application

Distribution and signal power cable for static application, mostly in ground, but also within and outside facilities, in cable canals, in concrete. Used in electric power plants and other electric plants, in industry, metropolitan networks and for connection of signalling devices in industry, traffic and similar. Resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding.



Construction

Conductors: Al, class 1 or 2, according to EN 60228
Insulation: PVC compound
Bedding: Extruded elastomere or plastomere compound or plastic tape
Armour: two aluminium tapes
Sheath: PVC compound



Technical characteristics

Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D; multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C




Country: Austria, Germany, Poland
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: IEC 60502-1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
