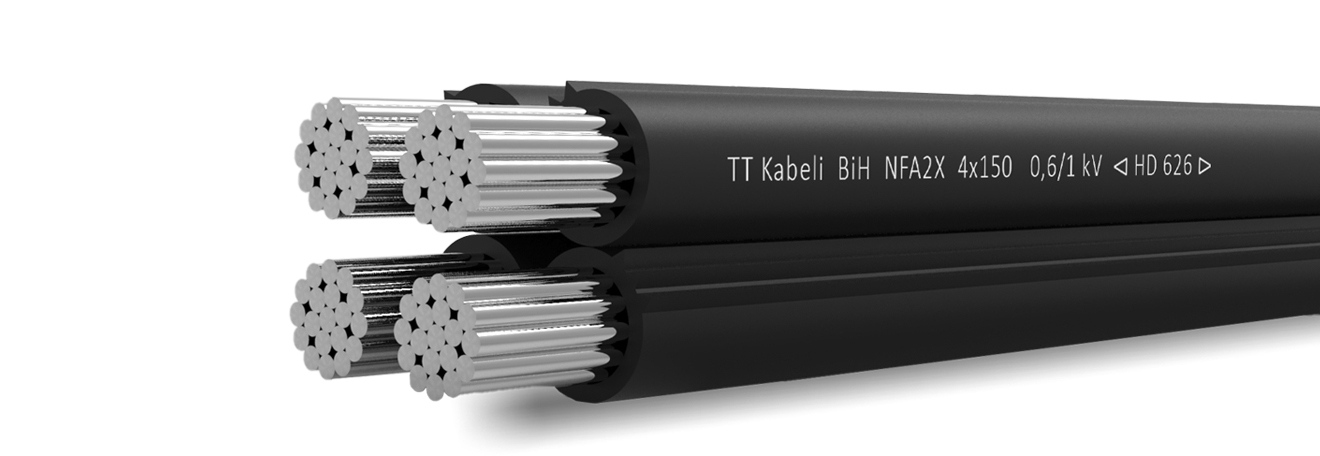

Overhead power cable 0,6/1 kV with Al conductors, XLPE insulated


For distributive low overhead network in the city, pros urban and rural areas. For supply of remote facilities and villages of temporary and permanent character. For above-ground house connections.



Phase onductors: Al, class 2 according to EN 60228
Neutral onductor: Al, class 2 according to EN 60228
Insulation: XLPE compound TIX 2


Technical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. temp. for cable laying: -10°C
Operating temperature: -40°C do 50°C
Max. working temperature: 80°C
Max. short-circuit temperature: 130°C
Min. bending radius: 18D
CPR class: Fca


Country: Albania, Czech Republic, Germany, Poland, Slovakia
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 626 S1, VDE 0276-626
Type: Overhead Line, Power Network & Local Distribution Cable
Conformitè EuropëenneREACHROHSVDE
