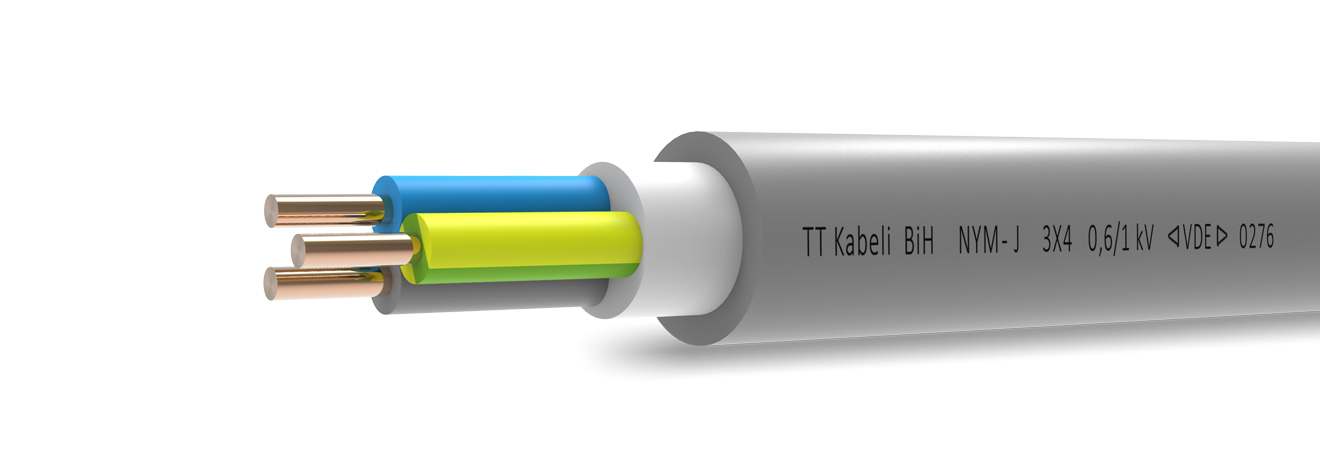

nstallation cables 300/500 V, insulated and sheathed with PVC


Installation cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).


Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: PVC compound, type TI 1
Bedding: PVC or EPDM compound
Sheath: PVC compound, type TM 1

Technical Characteristics

Test voltage: 2 kV
Rated voltage: 300/500 V
Bending radius (min): 6D;
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C

Country: Germany
Industry: Building & Construction, Switchgear
Standard: DIN VDE 0250-204
Type: Fixed Wiring Cable, LV installation cables, PVC Cables
