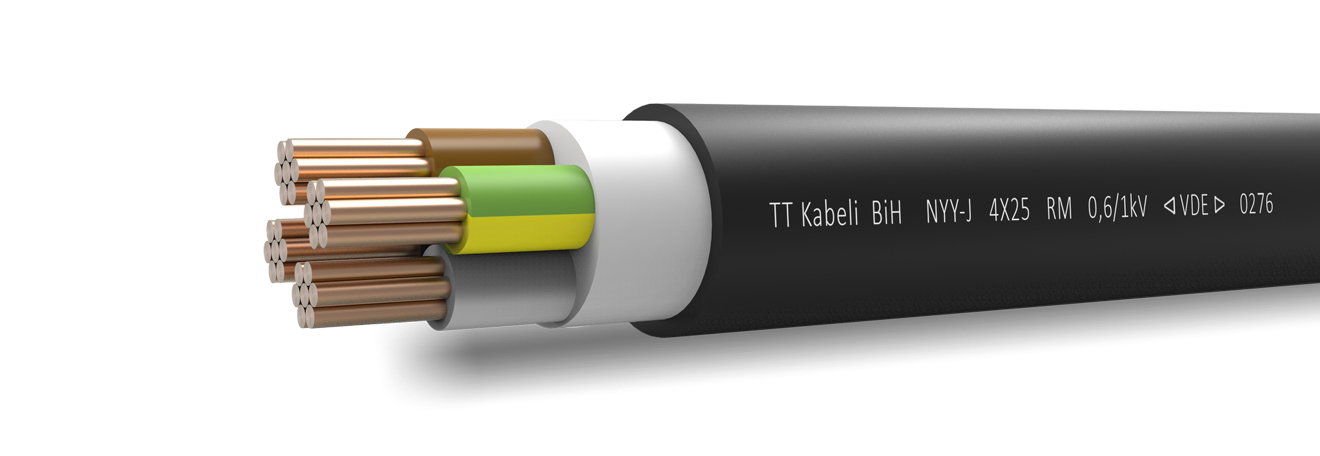

NYY

Power cable 0,6/1 kV with Cu conductors, PVC insulated and sheathed

Application

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.



Construction

Conductors: Cu, class 1 or 2 according to EN 60228
Insulation: PVC compound DIV 4
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound DMV 5



Technical characteristics

CPR class: Eca
Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D; multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C




Country: Austria, Germany, Poland
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1, VDE 0276-603
Type: Industrial Cable, Power Network & Local Distribution Cable
