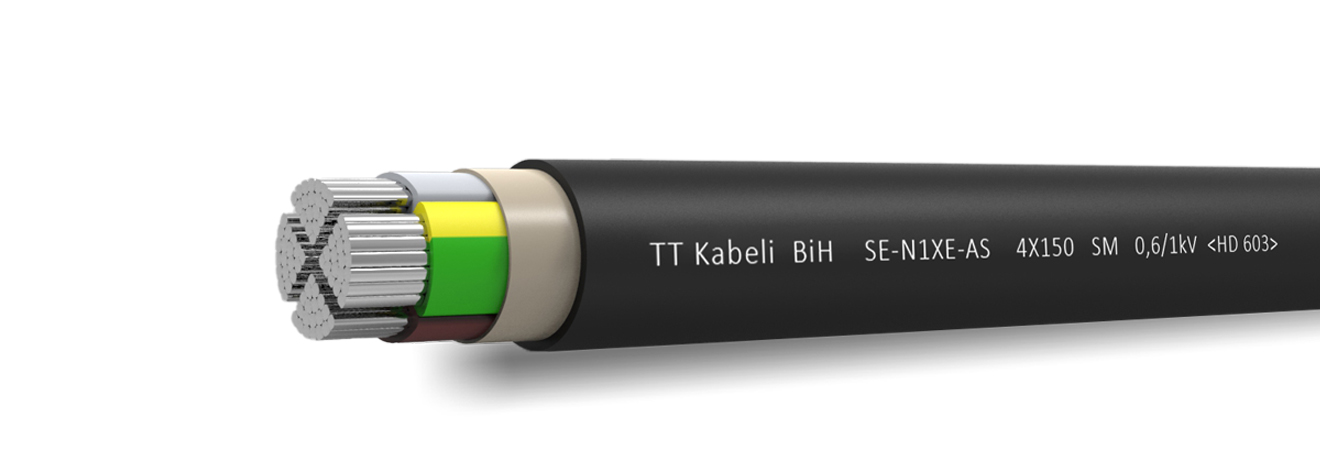

SE-N1XE-AS
Power cable 0,6/1 kV with Al conductors, XLPE insulated and LDPE sheathed
APPLICATION
This cable is used as a power distribution cable in power stations, industrial installations and switchgears as well as in local mains. Can be laid directly in ground but on sand base to avoid cable damaging. Cable laying must be performed only by qualified personell and according to national standards and regulations. For fixed installation underground, in interior premises, cable ducts, in the open air, in water – as permitted by the local building regulations – under severe mechanical stressing during installation and operation
Construction
Conductors: Annealed Al conductors, class 2
according to EN 60228
Insulation: : XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere
compound
Sheath: LDPE compound, DMP 7 type
Tehnical characteristics
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): 12xD
Min. laying temperature: -20°C
Max. short-circuit temperature: 250°C
Working temperature: -50°C up to 90°C
Min. bending radius during installation: 8xD
Country: Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, SS 424 14 18
Type: Industrial Cable, Power Network & Local Distribution Cable
