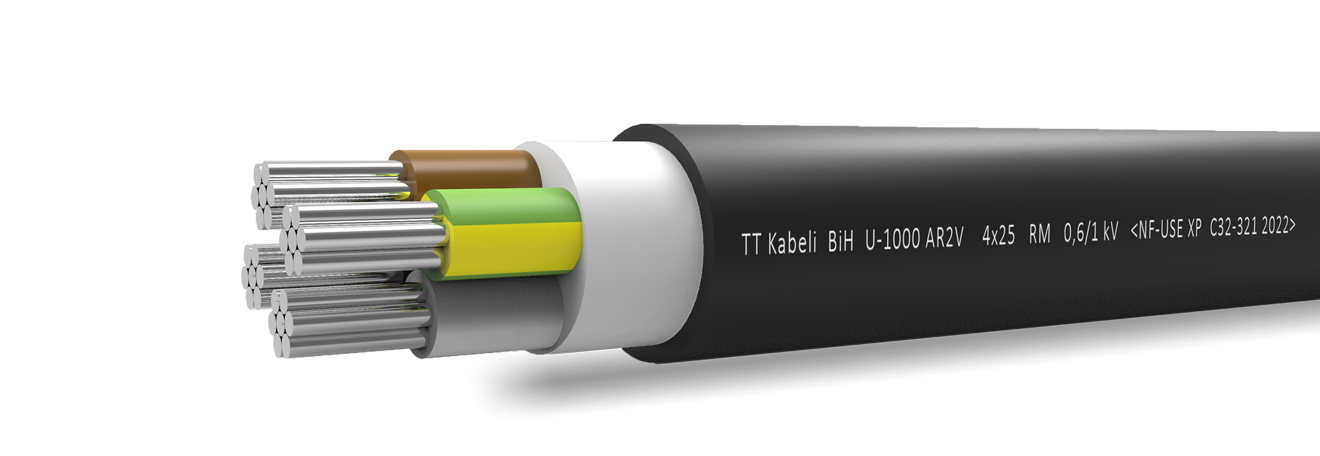

U-1000 AR2V
Power cable 0,6/1 kV with Al conductors, XLPE insulated and PVC sheathed
APPLICATION
These cables for energy distribution are suitable for all types of low voltage industrial-type connection, in urban grids, building installations, etc. Particularly suited in cases of high operating temperature and when high resistance to solar radiation and atmospheric agents is required. Good resistance to low temperature and chemical agents. Can be used without additional mechanical
protection in the open air, fixed to walls or in raceways, inside walkways, and in empty in Cable Constructions in general. Can be laid underground with mechanical protection constructed from slabs, tiles, or bricks. They are not recommend to lay this cable In ground flooded for more than two months per year. With appropriate mechanical protection it can be use in areas subject to
risk of explosion, but in this case the permitted current load is reduced by 15%. It can be used in ambient temperature down to -25°.
Construction
Conductors: Al, class 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere
compound
Sheath: PVC compound
Tehnical characteristics
CPR class: Eca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): multi-core – 12D;
single-core – 15D
Min. laying temperature: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Country: Croatia, France
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: IEC 60502-1, NF C32-321
Type: Industrial Cable, Power Network & Local Distribution Cable
