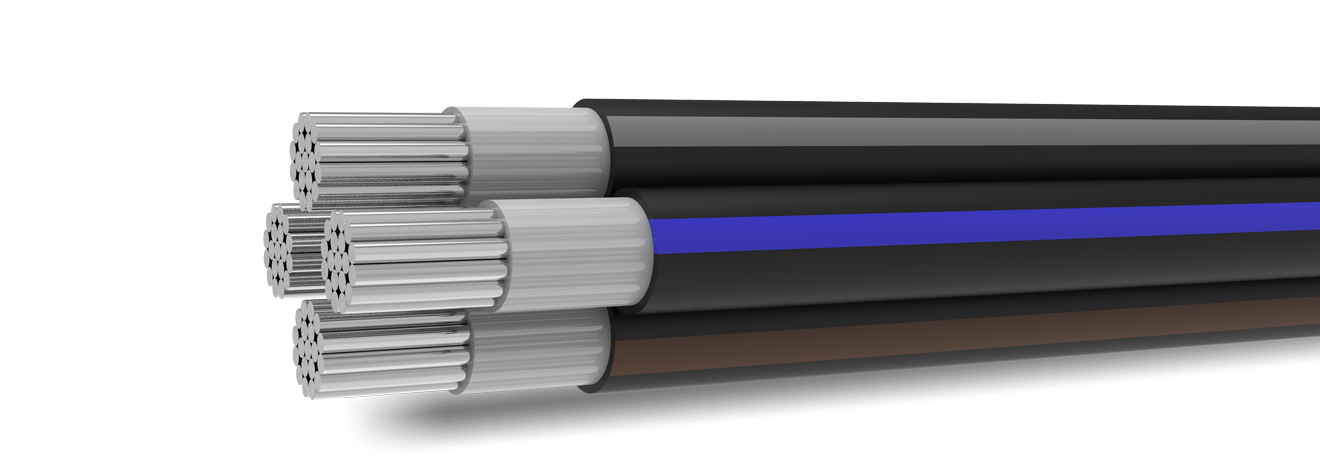

U-1000 AR2V Torsade

Power cable 0,6/1 kV with Al conductors, XLPE insulated and PVC sheathed

APPLICATION

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban
networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: Al, class 2 according to EN 60228
Insulation: : XLPE compound
Sheath: PVC compound

Tehnical characteristics

CPR class: Eca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): multi-core – 12D;
Min. laying temperature: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
