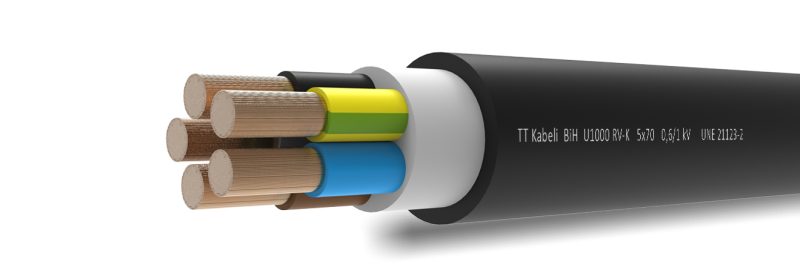

U1000 RV-K
XLPE insulated and PVC sheathed power cables with Cu conductors, rated voltage 0,6/1 kV
APPLICATION
Power cable suitable for household and industrial applications. Designed for installation on or under plaster, in walls, or embedded in concrete, without the need for additional mechanical protection (except in dry or pre-stressed concrete, where it must not be used).
Its flexibility significantly simplifies installation. Suitable for use in dry, damp, or wet environments, both indoors and outdoors, without the need for extra protection.
Construction
Conductors: Cu, class 5 according to EN 60228
Insulation: XLPE compound
Bedding: Extruded elastomere or plastomere compound
Sheath: PVC compound
Tehnical characteristics
Rated voltage: (Uo/U): 0,6/1 kV AC; 1,5/1,5 kV DC
Lowest installation temperature: -5°C
Maximum conductor operating
temperature: 90°C
Max. short-circuit temperature: 250°C
Lowest ambient temperature for
fixed installation: -35°C
Min. bending radius: 8D; D – overall diameter
CPR class (EN 50575, EN 13501-6): Eca
Country: Spain
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: IEC 60502-1, UNE 21123-2
Type: Industrial Cable, Power Network & Local Distribution Cable
