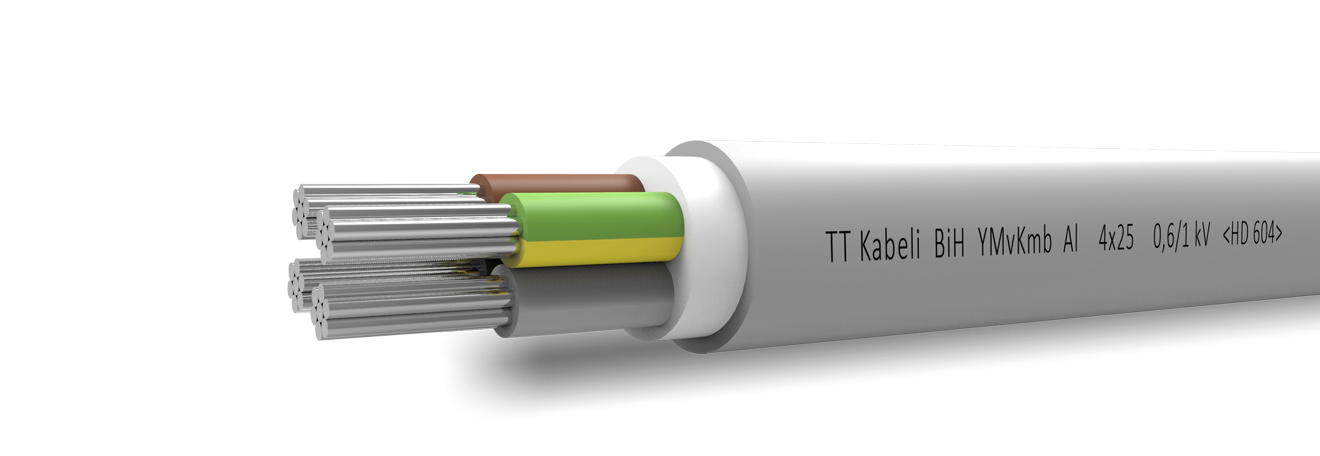

YMvKmb Al

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed

APPLICATION

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

Construction

Conductors: Al, class 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheat: PVC compound

Tehnical characteristics

CPR class: Dca – s3,d1,a3
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: 0°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C


Country: Netherlands
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 604 S1, IEC 60502-1
Type: Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable, Screened cables
Conformitè EuropëenneCPRIECKEMA LabsREACHROHS
