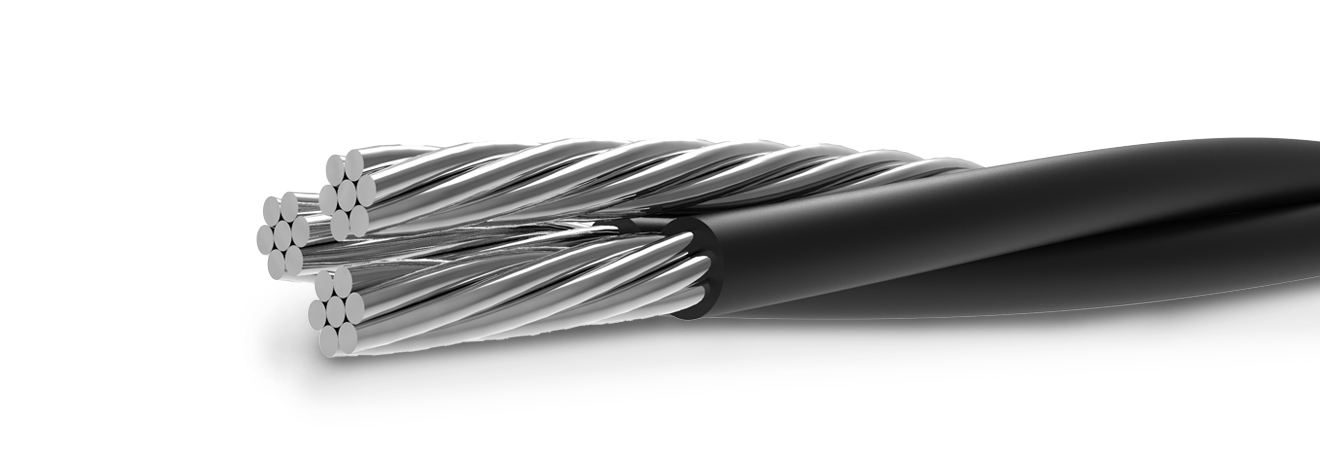

AAC 1/0 Triplex – Murex

Neutral-supported secondary and service drop cable – 600V – Aluminium


Used to supply power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.


Conductor: Conductors are stranded, compressed 1350-H19 aluminum
Insulation: Cross Linked Polyethylene (XLPE)
Messenger: AAC Neutra


Country: USA
Industry: Transmission, Distribution & Power Networks
Standard: ANSI/ICEA S-76-474, ASTM - B-230 Aluminum Wire,1350-H19 for electrical purposes, ASTM - B-231 Aluminum Conductors, Concentric-LayStranded, ASTM - B-399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
Type: Power Network & Local Distribution Cable
