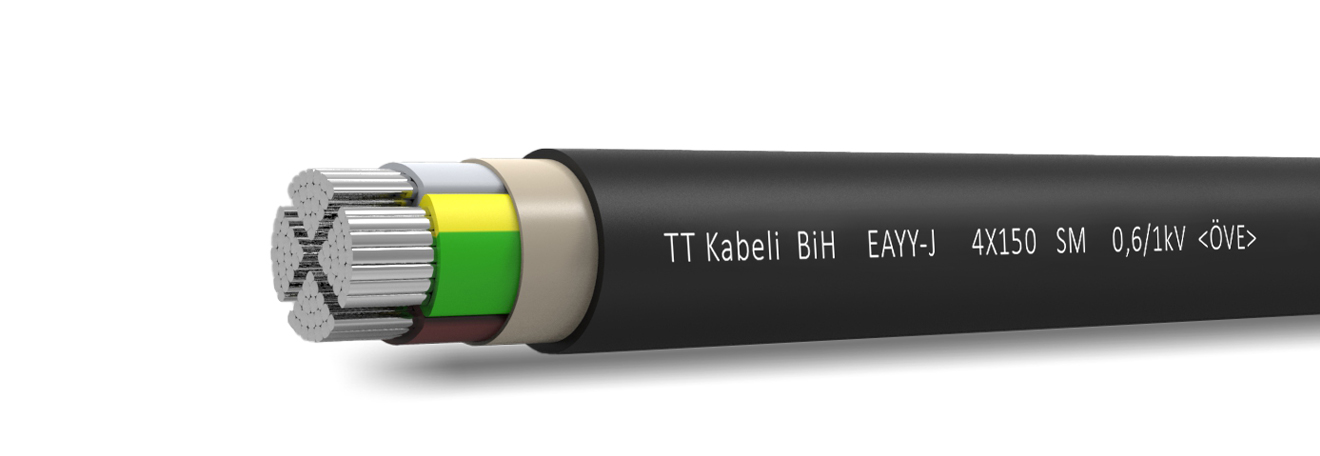

EAYY
Power cable 0,6/1 kV with Al conductors, insulated and sheathed with PVC
Application
In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.
Construction
Conductors: Al, class 1 (RE/SE) or class 2 (RM/
SM) according to EN 60228
Insulation: PVC compound DIV 1
Bedding: Extruded elastomere or plastomere
compound or plastic tape
Sheath: PVC compound DMV 1
Technical characteristics
CPR Class: Eca
Test voltage: 4 Kv
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Country: Austria, Croatia
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 603 S1, ÖVE E8200-603
Type: Industrial Cable, Power Network & Local Distribution Cable
