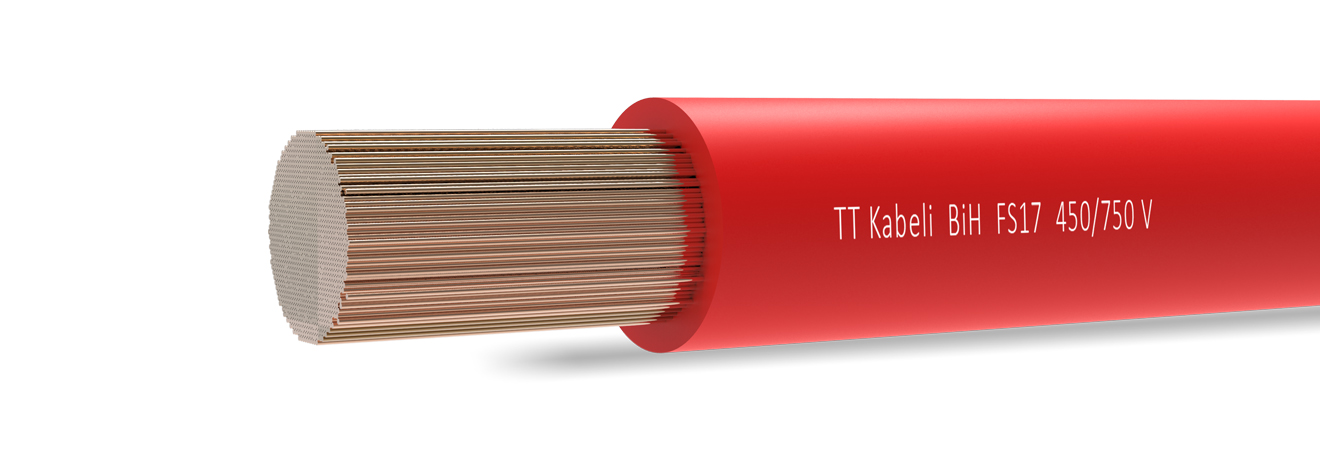

FS17
Low voltage PVC insulated flexible conductor. Flame and fire retardant, low emission of smoke, toxic and corrosive gases
Application
Cables suitable for electric power systems in construction and buildings, in order to limit fire and smoke production. Suitable for fixed and protected installation in, or on, lighting or control gear for voltage up to 1000 V AC; up to 750 V DC to earth. For further details, please refer to CEI 20-40 standard.
Construction
Conductors: Cu rope, class 5 acc. to EN 60228
Insulation: PVC compound, S17 quality
Technical characteristics
CPR class: Cca – s3,d1,a3
Test voltage: 2,5 kV
Rated voltage: 450/750 V
Bending radius (min): 4D
Min. laying temperature: -5°C
Min. operating temperature: -10°C
Max. conductor temperature: 70°C
Max. short-circuit temperature:160°C
Country: Italy
Industry: Building & Construction
Standard: CEI-UNEL 35716
Type: Fixed Wiring Cable
