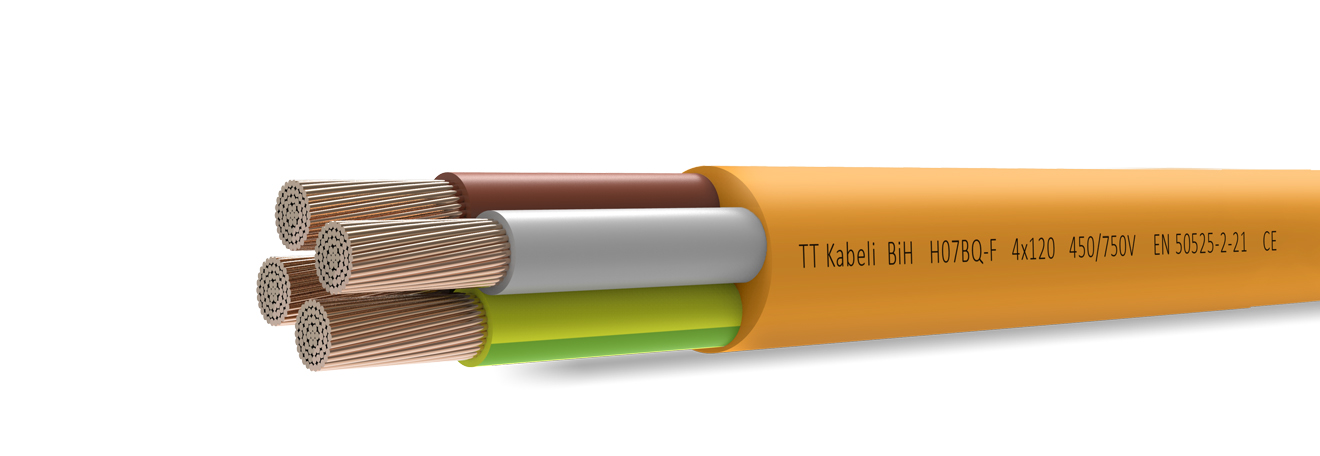

H05BQ-F, H07BQ-F

Halogen-free flexible installation cables upto 450/750 V, sheathed with polyurethane


These cables can be used in dry, damp and wet areas, also outdoor, for medium mechanical loads. Robust and
flexible, resistant to oils and external conditions, can be used in marinas for ship connection, as supply cables for electrical machines in construction industry and shipyards, for hand drills, circular saws and similar, for mobile motors
in agriculture, heating devices if there is no risk that the cable will come in contact with hot elements. Flexibility at low temperatures up to -40 °C makes it suitable for use in freezing zones.


Conductors: Cu conductors, class 5 according to EN 60228
Insulation: Cross-linked elastomere compound, type EI 6
Bedding: Extruded rubber or plastic compound, or
sheath can fill the spaces between cores
Sheath: Thermoplastic polyurethane (PUR), type TMPU

Tehnical characteristics

Nominal voltage (H05BQ-F): 300/500 V
Nominal voltage (H07BQ-F): 450/750 V
Test voltage (H05BQ-F): 2000V
Test voltage (H07BQ-F): 2500V
Temperature range:
During installation, with bending: -30°C up to 80°C
Fixed instaled: -40°C up to 90°C
Max. short-circuit temperature: 200°C
Min. bending radius: 6D

Country: Bosnia and Herzegovina, Croatia, Czech Republic, Hungary, Montenegro, North Macedonia, Poland, Serbia, Slovakia, Slovenia
Industry: Marine & Offshore
Standard: EN 50525-2-21
Type: LV installation cables, Marine & Offshore Cable, PUR Cable
Conformitè EuropëenneREACHROHS
