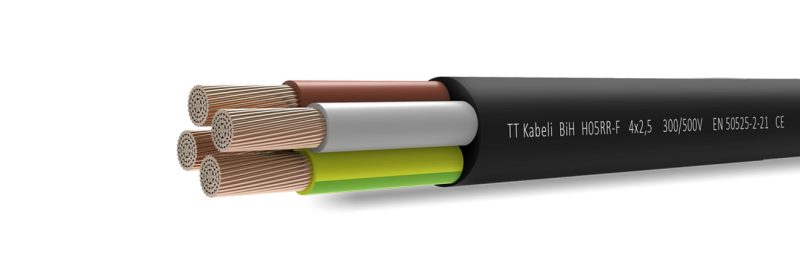

H05RR-F
Low voltage 300/500 V flexible Cu cables insulated and sheathed with rubber
APPLICATION
Multicore cables with rubber insulation and sheathing, intended for mobile and portable receivers. The cables are manufactured in accordance with a harmonized standard (H), intended to support rated voltage of 300/500V (05), with EPR rubber insulation (R) and EPR rubber (NR), with flexible conductors (F). Recommended application: for common household applications, i.e. to be used in rooms, kitchens, offices and to power devices, where cables are exposed to small mechanical stress (e.g. vacuum cleaners, kitchen appliances, toasters).
Construction
Conductors: Cu, class 5 according to EN 60228
Insulation: Rubber compound, type EI 4 according to EN 50363-1
Sheath: Rubber compound, type EM 3 according to EN 50363-2-1
Tehnical characteristics
Test voltage: 2 kV
Rated voltage: 300/500 V
Min. laying temperature: -25°C
Max. conductor temperature: 60°C
Max. short-circuit temperature: 200°C
Country: Bosnia and Herzegovina, Croatia, Czech Republic, Hungary, Montenegro, North Macedonia, Poland, Serbia, Slovakia, Slovenia
Industry: Building & Construction
Standard: EN 50525-2-21
Type: LV installation cables, Rubber Flexible Cable
