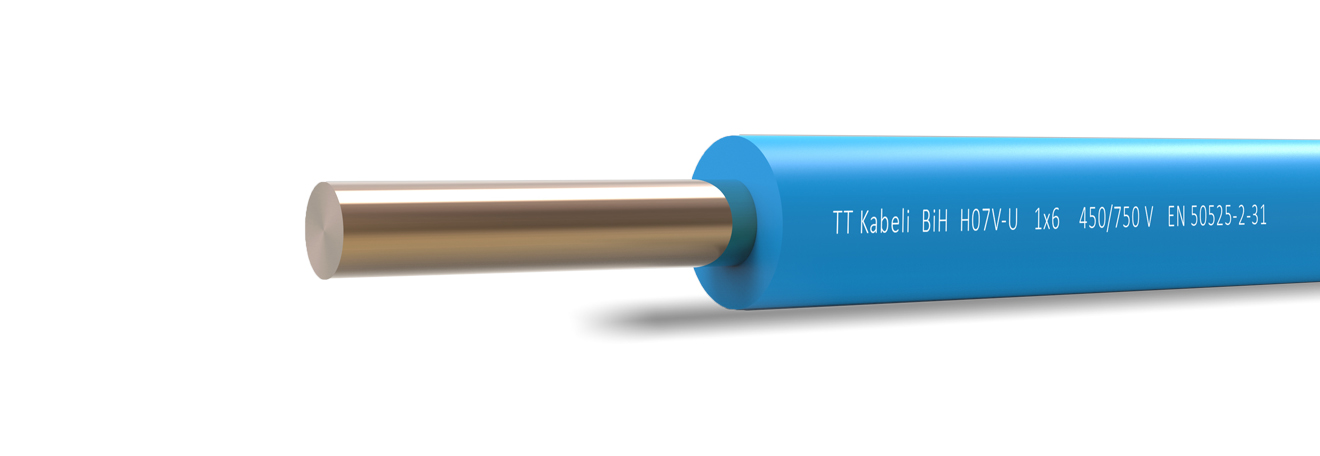

H07V-U

Low voltage PVC insulated conductor

APPLICATION

For laying in pipes on top of or under plaster and in closed installation ducts and for internal wiring of machinery, switchgear and distributor systems. The cable is not suitable for direct laying under plaster.

Construction

Conductors: Cu conductor, class 1
Insulation: PVC compound

Tehnical characteristics

CPR class: Eca
Test voltage: 2,5 kV
Rated voltage: 450/750 V
Bending radius (min): 6xD
Laying temperature (min) : -5°C
Ambience temperature: -35°C to 35°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C


Country: Bosnia and Herzegovina, Croatia, Czech Republic, France, Hungary, Montenegro, North Macedonia, Poland, Serbia, Slovakia, Slovenia, Switzerland
Industry: Building & Construction, Data Centres, Switchgear
Standard: EN 50525-2-31, IEC 60227
Type: Fixed Wiring Cable, LV installation cables, PVC Cables
Conformitè EuropëenneCPREZUIECREACHROHS
