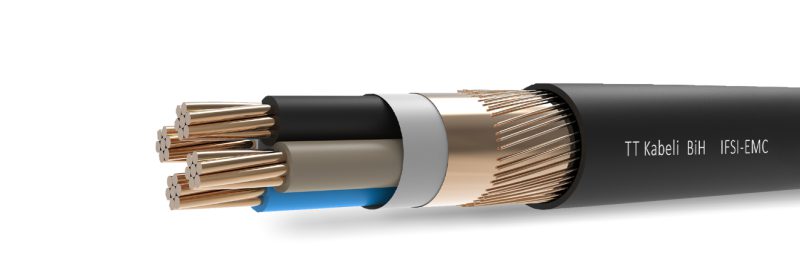

IFSI-EMC, FXQJ-EMC
Power cable 0,6/1 kV, with Cu conductors, XLPE insulated and sheathed with halogen-free compound, with concentric conductor
APPLICATION
EMC shielded power cable with copper conductors. Halogen free, flame retardant and self-extinguishing in the event of fire. Smoke in the event of fire is minimal, transparent and not harmful to electronic equipment. For fixed installation, indoors, outdoors, in pipes, ground or water. Suitable for switchgear and potentially explosive areas. Can be plowed down when care is taken. The copper screen has 100% coverage and meets EMC Directive with appropriate installation. Expected lifetime 50 years, provided proper installation, load and ambient temperature.nstallation.
Construction
Conductors: Cu, class1 or 2 according to EN
60228
Insulation: XLPE compound
Bedding: Halogen-free plastic tape
Concentric conductor: Cu foil tape and Cu wires
with counter helix of Cu tape
Sheath: HFFR compound; UV resistant
Tehnical characteristics
CPR class: Dca – s1,d2,a1
Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): multicore – 12D
Min. laying temperature: -20°C (during installation below 0°C special precausion is needed)
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Low smoke emitting: EN 61034-2
Halogen free: EN 60754-1; EN 60754-2
Vertical flame spread: EN IEC 60332-3-24
Flame propagation: EN 60332-1-2
CPR class: EN 50575, EN 13501-6
Country: Denmark, Finland, Norway, Sweden
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: HD 604 5D, HD 604 S1, IEC 60502-1
Type: LSZH Cable, Power Network & Local Distribution Cable, Screened cables
