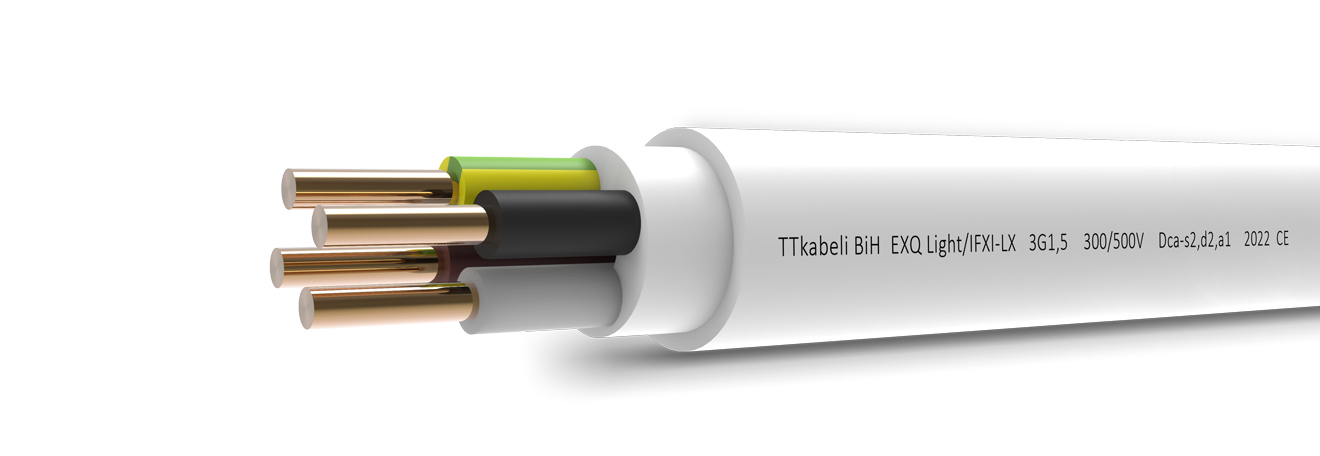

MMJ-HF/EXQ Light/IFXI LX

Cable with Cu conductors, XLPE insulated and HFFR sheathed

Application

The cable is a halogen free, XLPE-insulated and HFFR-sheathed house wiring cable with circular, copper conductors. For fixed surface and flushmounted installations, indoors and outdoors. Suitable for installation directly in ground. This cable is recommended for use in public and industrial settings whenever good fire retardant qualities, reduced fumes, toxic and corrosive gases emissions are required in the case of fire. Cables need to be installated according to local Danish securtity regulation “Installeres iht. Elsikkerhedsloven”.

Construction

Conductors: Cu, according to EN 60228
Insulation: XLPE compound
Bedding: Halogen-free polyolefin compound
Sheath: HFFR compound, white, UV resistant

Technical characteristics

CPR class: EXQ light/ /IFXI LX: Dca s2,d2,a1
MMJ-HF: Dca s1,d2,a1
Rated voltage: MMJ-HF (6-25 mm2): 450/750 V
EXQ Light/IFXI LX (1,5-2,5 mm2): 300/500 V
Bending radius (min): 6xD
Min. handling temperature: -15°C
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
Fire properties: EN 50399 ; EN 60332-1-2
EN 60332-3-24 ; EN 60754-2 ; EN 61034-2




Country: Denmark, Finland, Norway, Sweden
Industry: Building & Construction
Standard: NEK 591, SFS 5544, SS 424 02 19-5
Type: LSZH Cable, LV installation cables
