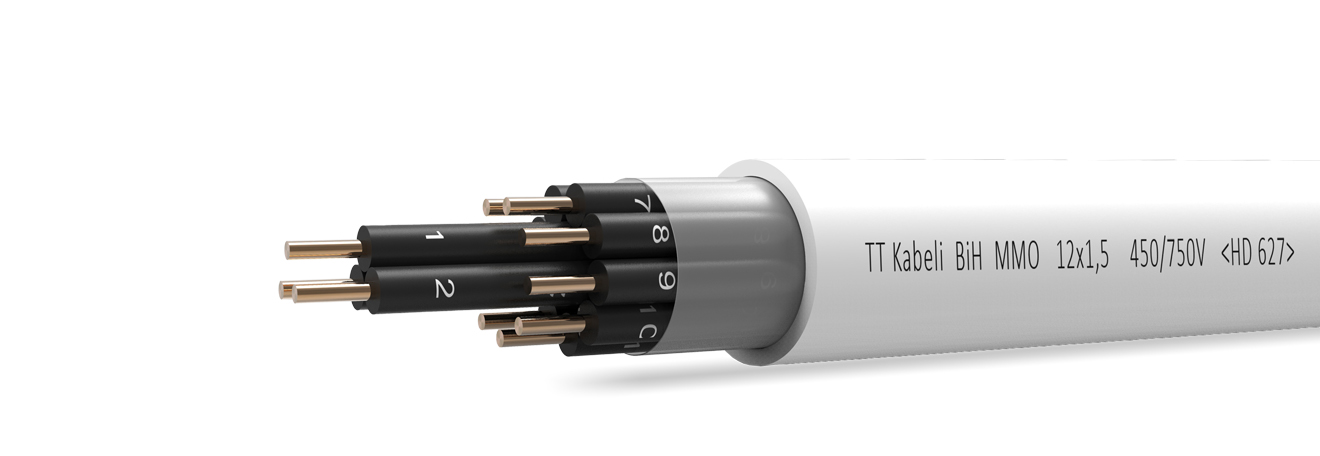

Power cable 450/750 V with Cu conductors, insulated and sheathed with PVC


Cable for the control, measuring and signal circuits of electrical equipment for fixed surface and flush-mounted installations, indoors and outdoors. Not suitable for installation directly in ground nor directly in concrete without protective ducting. Not for installations subject to electrical interference.


Conductors:Cu, class 1 according to EN 60228
Insulation: PVC compound, type TI1
Bedding: Extruded elastomere or plastomere
compound or plactic tape
Sheath: PVC compound, type TM 1

Tehnical characteristics

CPR class:Eca
Test voltage: 2,5 kV
Rated voltage: 450/750 V
Min. bending radius: multicore – 12D
Max. short-circuit temperature: 160°C
Min. temp. for cable laying: -15°C
Max. working temperature: 70°C

Country: Finland
Industry: Building & Construction
Standard: HD 627 S1, p.4D-2
Type: Control Cable, PVC Cables
