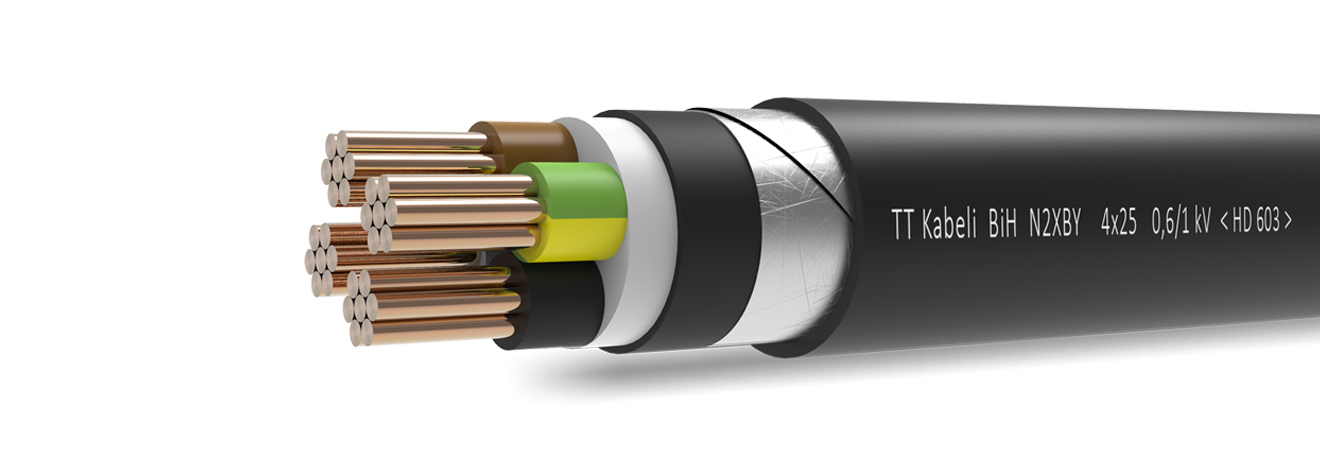

N2XBY

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and HDPE sheathed

Application

Distribution power cable for static application, mostly in ground, but also in water, within facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

Construction

Conductors: Cu, class1 or 2 according to EN 60228
Insulation: XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere compound or plastic tape
Armour: two galvanized steel tapes
Sheath: PVC compound DMP 2

Technical characteristics

Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. temp. for cable laying: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Min. bending radius: single-core – 15D; multicore – 12D


Country: Austria, Germany, Poland
Industry: Building & Construction, Mining, Drilling & Tunnelling, Transmission, Distribution & Power Networks
Standard: HD 603 S1, IEC 60502-1
Type: Armoured Cable – SWA & AWA, Industrial Cable, Power Network & Local Distribution Cable
Conformitè EuropëenneIECREACHROHS
