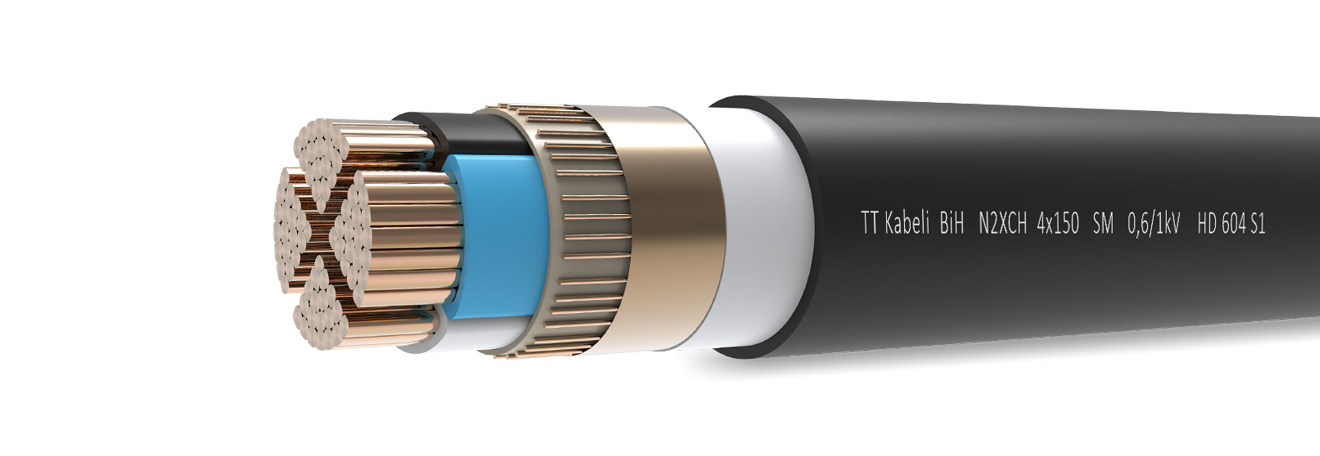

Power cable 0,6/1 kV with XLPE insulation and HFFR sheath


In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.)


Conductors: Cu rope
Insulation: XLPE compound
Filling: Extruded elastomere or plastomere compound or plastic tape
Concentric conductor: Cu wires with counter helix of Cu tape
Sheath: HFFR compound

Technical characteristics

CPR class: Dca – s1,d2,a1
Test voltage: 4 kV
Rated voltage: 0,6/1 kV
Bending radius (min): single-core – 15D;
multicore – 12D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C


Country: Austria, Croatia, Germany, Slovakia
Industry: Building & Construction, Transmission, Distribution & Power Networks
Standard: Cat. C, EN 60332-3-24, IEC 60502-1, VDE 0276-604
Type: Industrial Cable, LSZH Cable, Power Network & Local Distribution Cable, Screened cables
Conformitè EuropëenneIECREACHROHS
